8. BINS

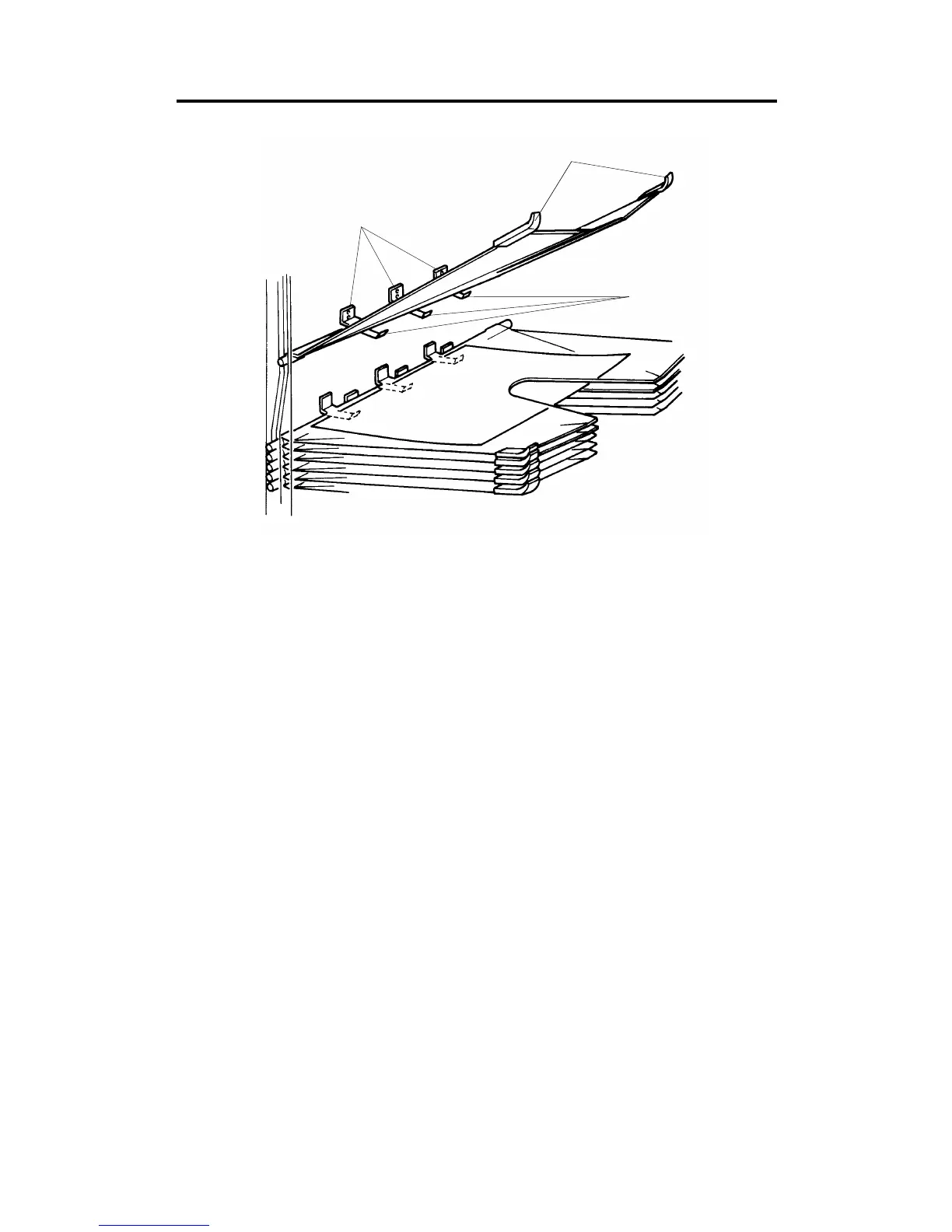

The proof tray and the twenty bins are all basically the same. Formed out of
thin flexible steel plate, they have spacers [A] at the end to hold them apart
and pins at the front and rear on the other end, which are inserted in guide
slots in the sorter frame.
The stoppers [B] prevent copies from sliding back into the sorter after they
have been fed out. The arrangement of these stoppers is different for even
and odd numbered bins.
Three leaf springs [C] on the underside of each bin hold the copies flat in the
underlying bin.
[B]
[C]
[A]
A156/A160/A162 8-10 STM
