Ricoh A156 - Page 224

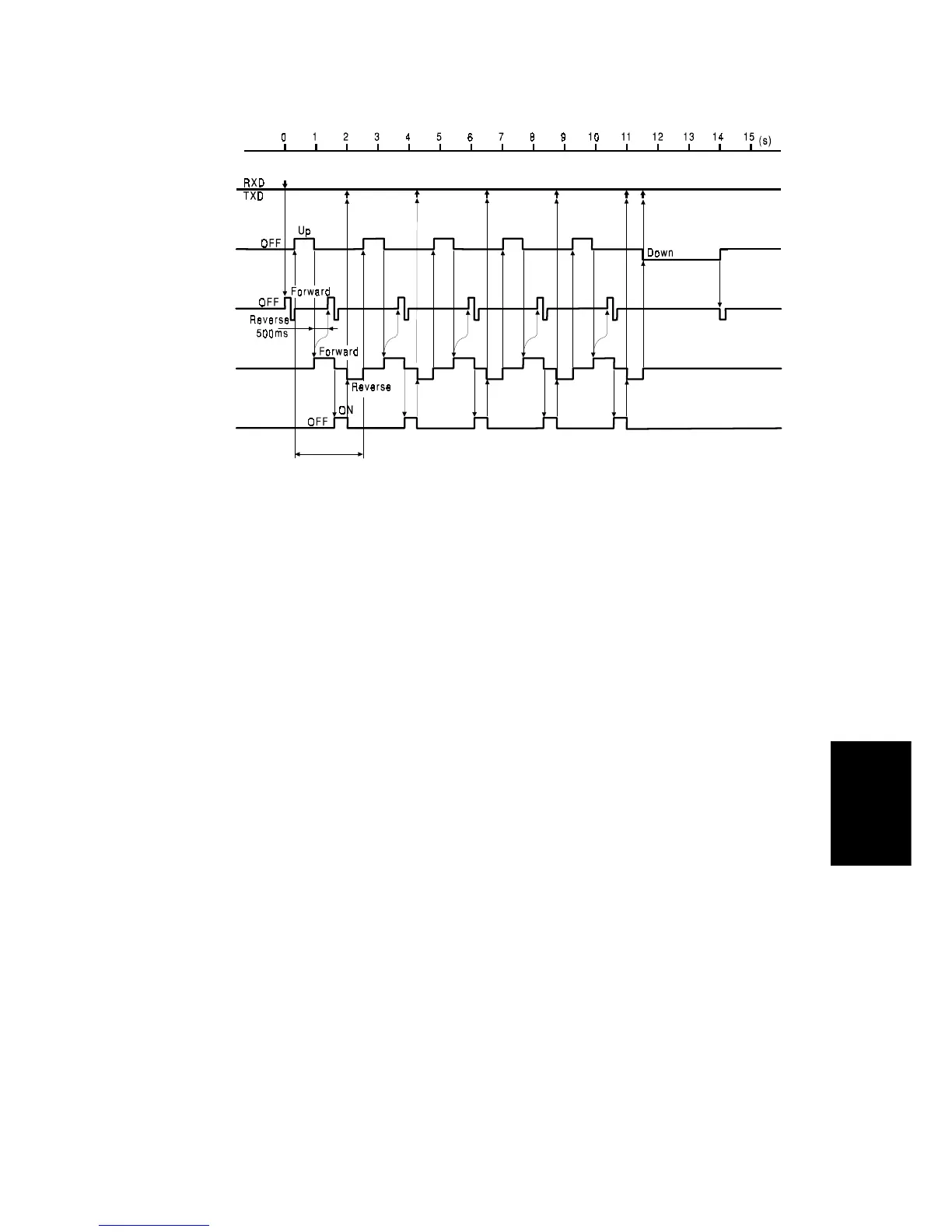

Timing Chart 3: Stapling (A4 sideways, 2 copies for 5 bins)
Interface
Bin Lift Motor
Jogger Motor
Grip Motor
Stapler Motor
Staple ON
signal
Staple count
signal
Job completion
signal
Returns to
H.P.
1 staple cycle
Sorter Stapler
A554
STM 6-27 A156/A160/A162
