If you set "Authentication Type" to [Windows (Native)] or [Windows (NT Compatible)], you can use
the global group.
If you set "Authentication Type" to [Notes], you can use the Notes group. If you set "Authentication
Type" to [Basic (Integration Server)], you can use the groups created using the Authentication
Manager.

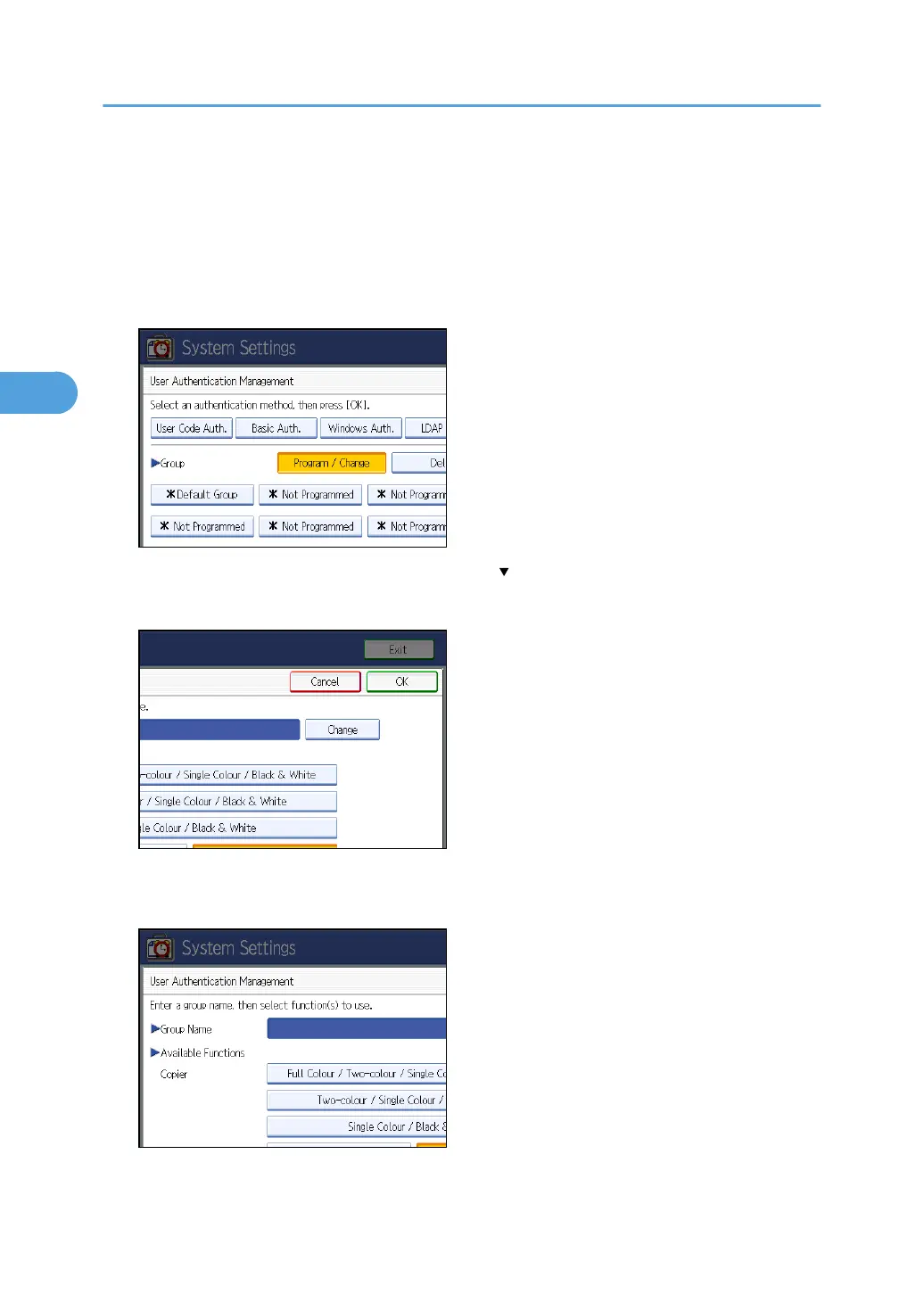

13. Under "Group", press [Program / Change], and then press [* Not Programmed].
If the setting to be specified does not appear, press [ Next] to scroll down to other settings.
14. Under "Group Name", press [Change], and then enter the group name.
15. Press [OK].
16. Select which of the machine's functions you want to permit.
Authentication will be applied to the selected functions.
3. Users/Authentication and Its Application
76
3

Table of Contents

Other manuals for Ricoh Aficio MP C2050

Preview: Service Manual
Service Manual1171 pages
Preview: User Manual
User Manual41 pages
Preview: Specification
Specification8 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh Aficio MP C2050 and is the answer not in the manual?

Ricoh Aficio MP C2050 Specifications

Ricoh Aficio MP C2050

General Specifications IconGeneral Specifications
output speed20 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed20 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)

Ricoh Aficio MP C2550

General Specifications IconGeneral Specifications
output speed25 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed25 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)
