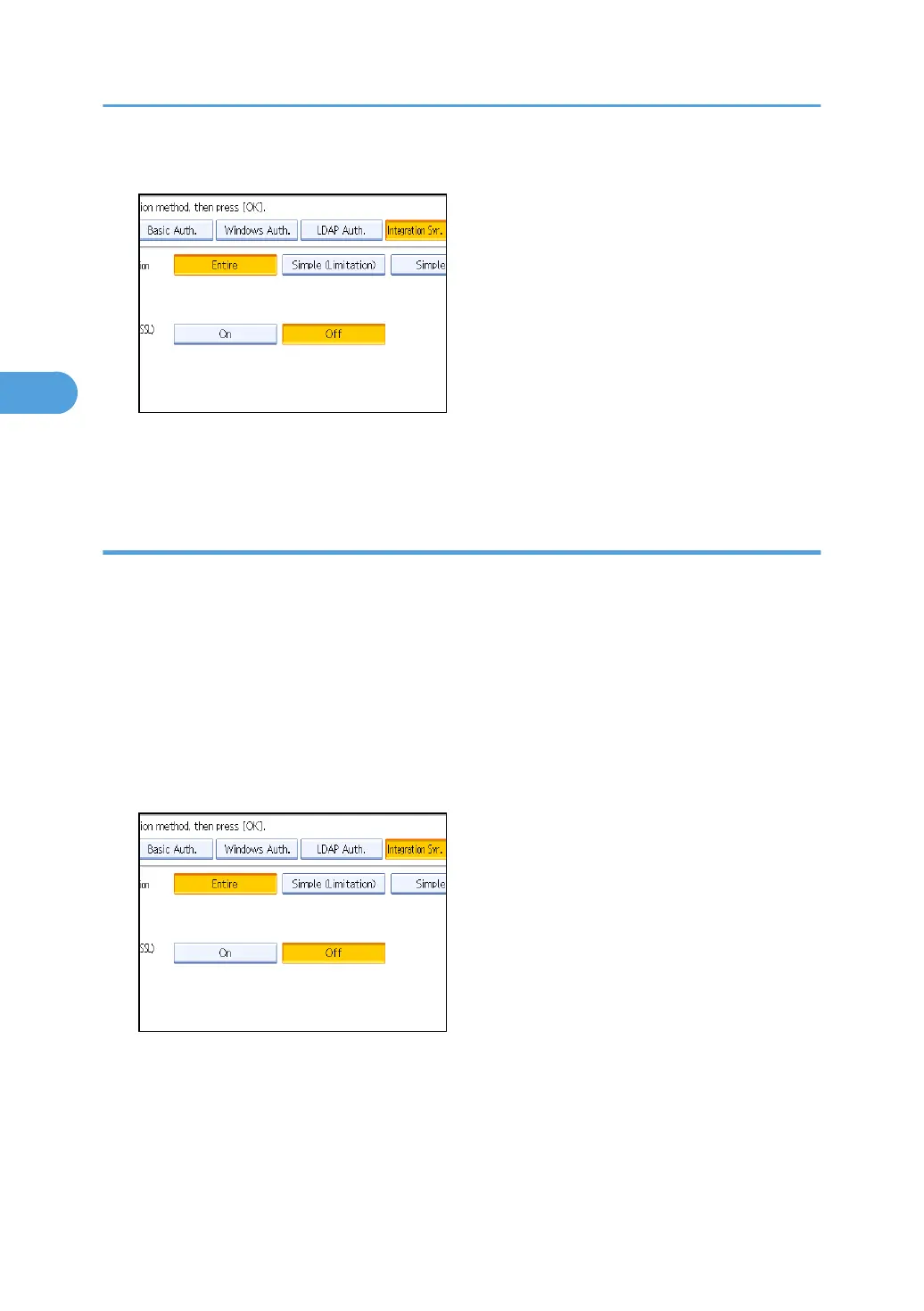

1. Press [On] for "Use Secure Connection (SSL)", and then press [OK].
To not use secure sockets layer (SSL) for authentication, press [Off].
2. Press the [User Tools/Counter] key.
Selecting Simple (Limitation)
If you select [Simple (Limitation)], you can specify clients for which printer job authentication is not required.
Specify [Parallel Interface: Simple], [USB: Simple] and the clients' IPv4 address range in which printer job
authentication is not required. Specify this setting if you want to print using unauthenticated printer drivers
or without any printer driver. Authentication is required for printing with non-specified devices.
If you select [Simple (Limitation)], you can print even with unauthenticated printer drivers or devices. Specify
this setting if you want to print with a printer driver or device that cannot be identified by the machine or if
you do not require authentication for printing. However, note that, because the machine does not require
authentication in this case, it may be used by unauthorized users.
1. Press [Simple (Limitation)].
3. Users/Authentication and Its Application
78
3

Table of Contents

Other manuals for Ricoh Aficio MP C2050

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh Aficio MP C2050 and is the answer not in the manual?

Ricoh Aficio MP C2050 Specifications

Ricoh Aficio MP C2050

General Specifications IconGeneral Specifications
output speed20 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed20 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)

Ricoh Aficio MP C2550

General Specifications IconGeneral Specifications
output speed25 ppm BW & Full-Color
warm-up time25 seconds
first copy time full-color9.5 seconds
copy resolution600 x 600 dpi
original capacity50 sheets
dimensions23.1" x 25.8" x 33.3" (587 x 655 x 845 mm)
weight220 lbs
power requirements120V, 60Hz, 12A
Printer Controller IconPrinter Controller
cpuRM7035C @ 533MHz
memory768 MB (512 MB + 256 MB) RAM (Standard); 1GB RAM (Maximum)
max. print speed25 ppm BW & Full-Color
max. print resolution1200 x 1200 dpi
standard interfaces10Base-T/100Base-TX Ethernet (RJ-45), USB 2.0 Device, USB 2.0 Host I/F
Scanner Specifications IconScanner Specifications
scanner resolutionFrom 100 to 600 dpi (1200 dpi for TWAIN)
scanning speed bw41 ipm
scanning speed full-color26 ipm
scan area main scan11.7" (297mm)
scan area sub scan17" (432mm)
