Various Scan Settings
110
6
Setting procedure of custom size when scanning part of an original
This section explains how to set a custom size for scanning an area within an
original.
To scan part of the original, it is necessary to specify Original Size (X1 and Y1),
Start Position (X2 and Y2), and Scan Area (X3 and Y3). Relationship of Original
Size, Start Position, and Scan Size differs depending on the original orientation
and set position. Make settings correctly by referring to the following examples.

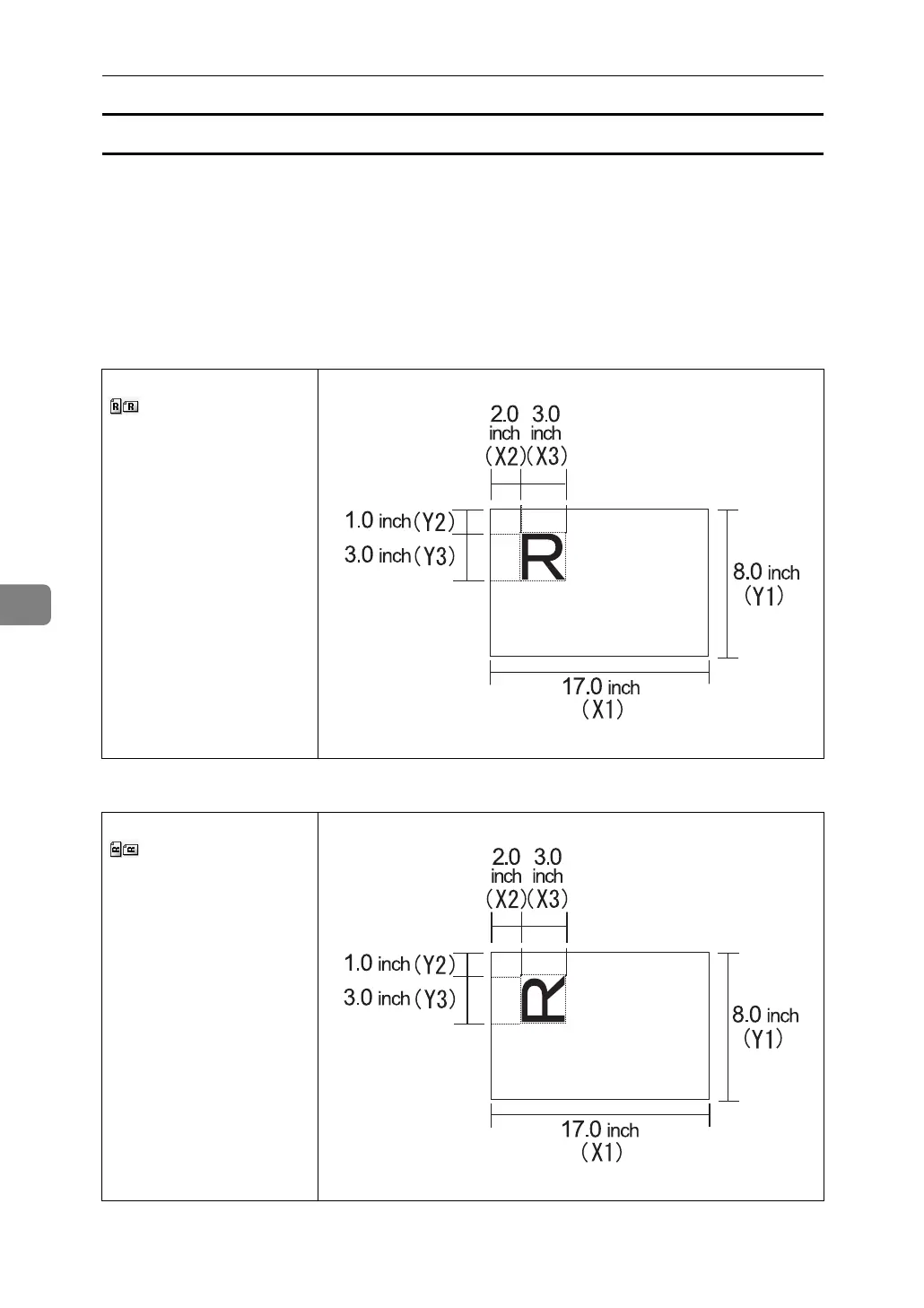

❖ Example 1
❖ Example 2
Original is placed in the
orientation on the ex-
posure glass or in the ADF.
Original is placed in the
orientation on the ex-
posure glass.
AMW009S
AMW010S
