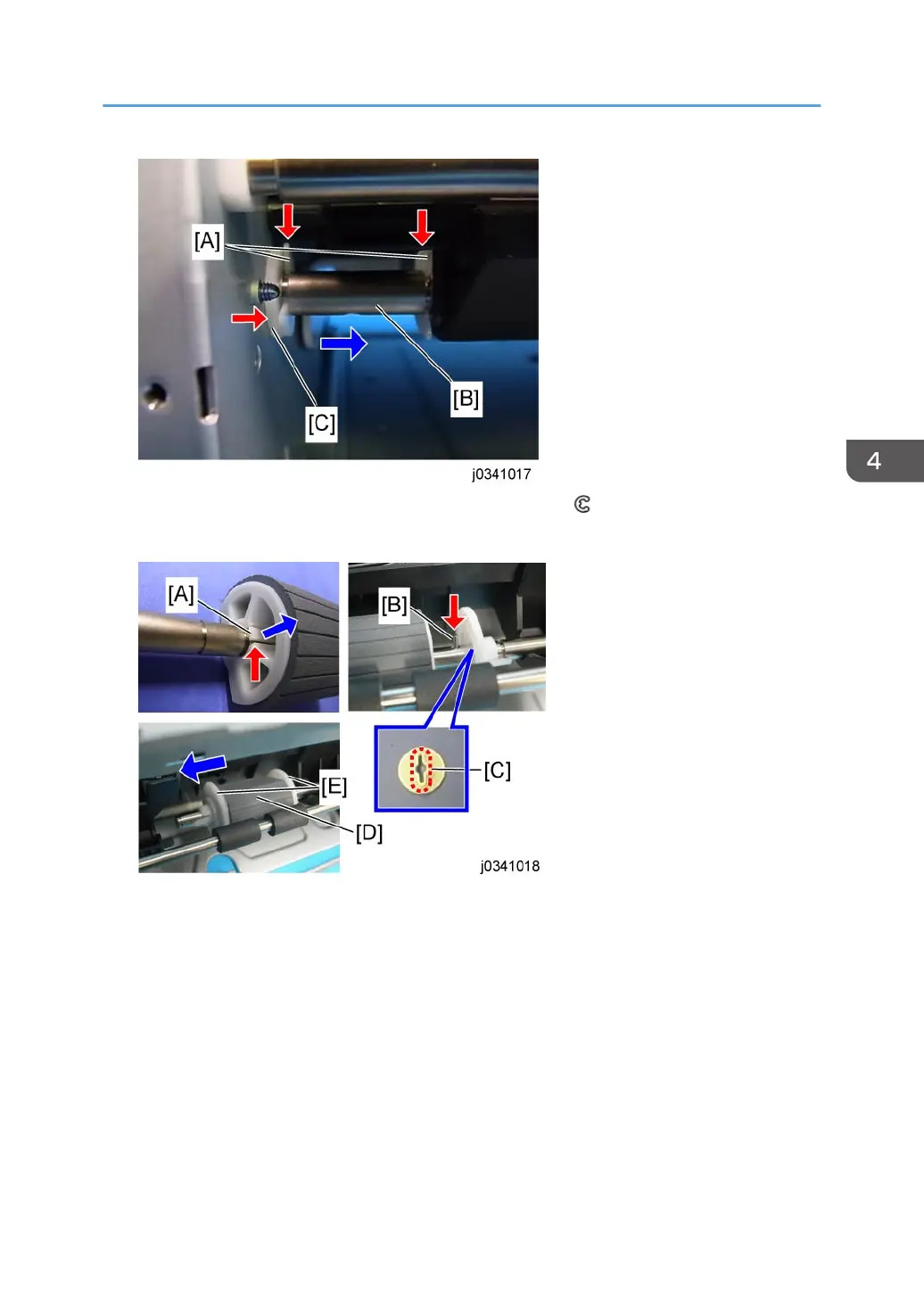

4. Remove 2 E-rings [A] from the right end of feed roller shaft [B] ( x 2).
5. Pull the feed roller shaft [B] out from the right end and remove 1 bushing [C] (Bushing x 1).
6. The paper feed roller [D] has a hook [A] on it. This is locked when the hook is engaged in the rod's
groove. Unhook the hock and slide the roller to remove from the shaft.
7. Remove the press roller [E] at the right side from the shaft, and then remove the feed roller [D] of
the left side from it. After that, align the fixing pin [B] and notch [C] on another press roller and
remove it form the shaft.
Rollers
125
