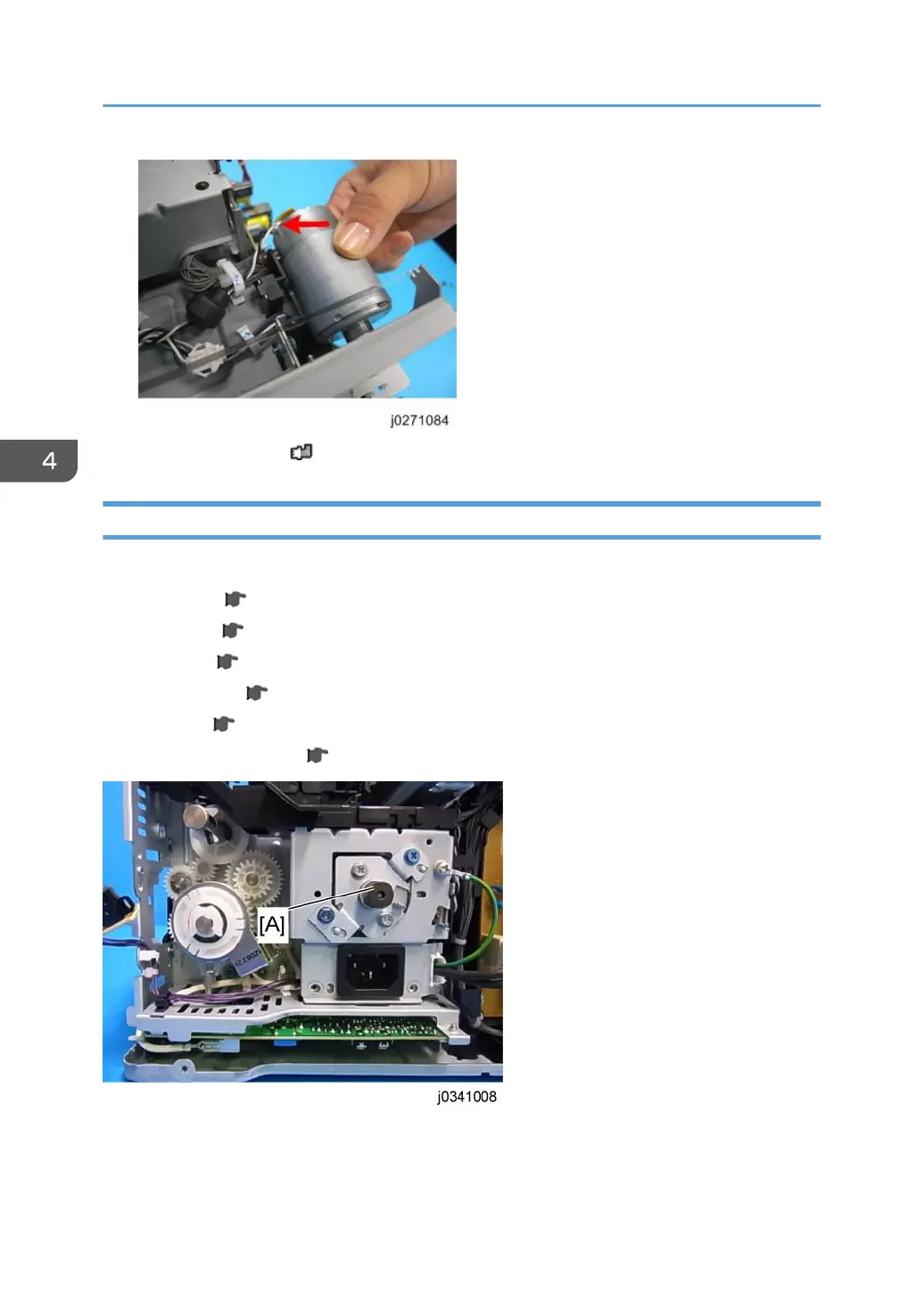

5. The horizontal motor ( x 1).
Vertical Motor
Preparation
•
Duplex unit (
p.48)
•
Rear cover (
p.51 "Rear Cover, Top Cover")
• Top cover ( p.51 "Rear Cover, Top Cover")
• Canopy cover ( p.57)
• Left cover ( p.56)
• Vertical encoder wheel ( p.71)
1. The vertical motor [A] is on the left side of the machine, behind the left frame.
4. Replacement and Adjustment
88
