Guidance for Differences between J034 and
that of the base machine

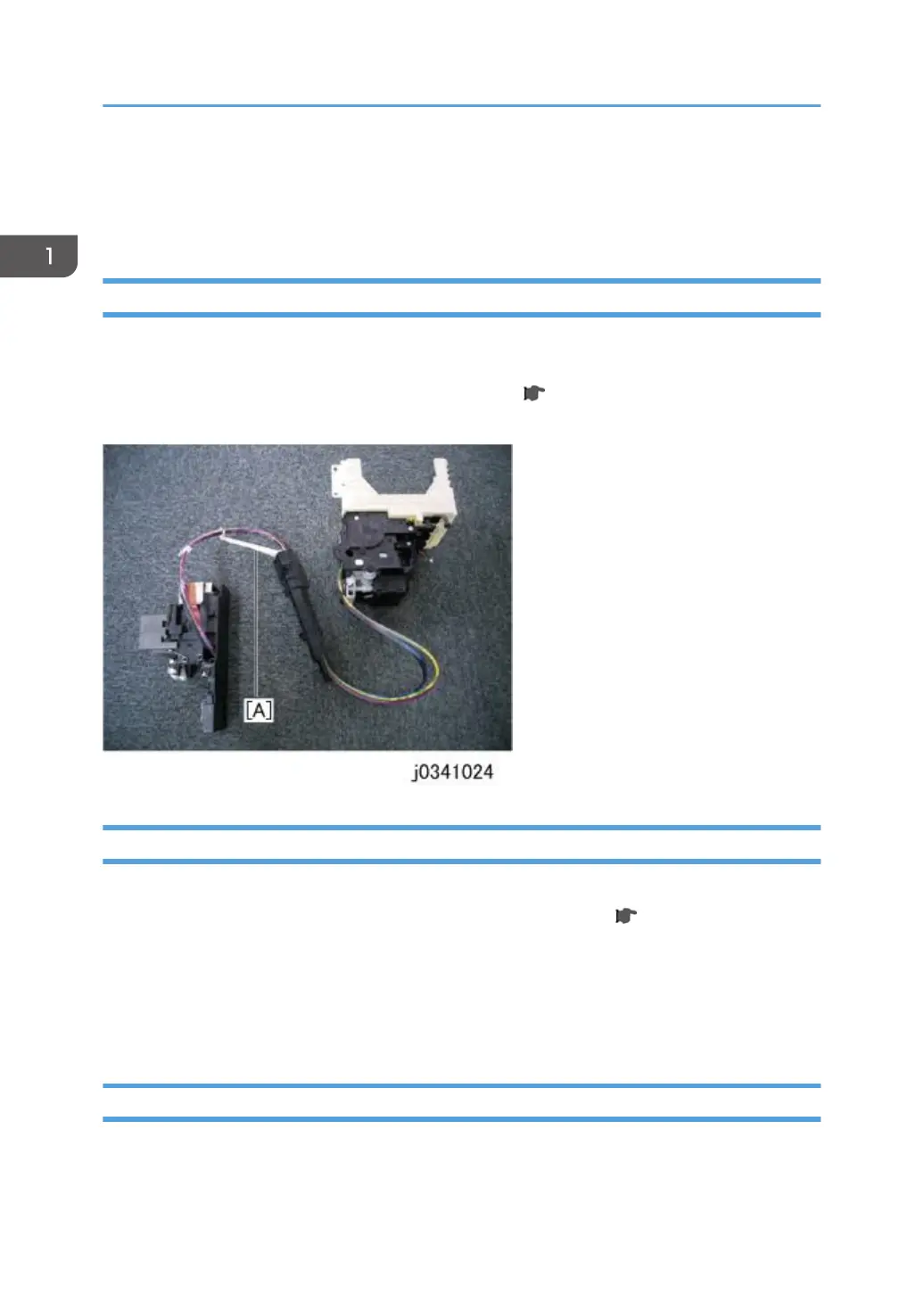

Ink Tube Stay
The J034 model adds the ink tube support stay [A] between the carriage and the ink supply unit so that
the large size papers can be printed smoothly. However, this stay requires no additional steps for the
replacement. Pay extra attention to remove the carriage unit ( p.129) from the main machine to
avoid damaging to this stay.
Paper Transport Belt Unit
For supporting the large size papers, The J034 machine’s width is increased consequently. This changes
some replacement procedures. Regarding as the paper transport belt unit ( p.96 "Transport Belt"),
the following procedures are changed.
• The carriage unit should be removed before removing the belt unit.
• The number of the pressure plate’s screws becomes 4.
• The number of the pressure plate’s springs becomes 6.
Rollers
The Pickup roller and the connecting roller removing procedures are also changed in some parts.
1. Product Information
24
