5. Release the clip fastening the flexible flat cable (FFC) and detach the cable from the
board.

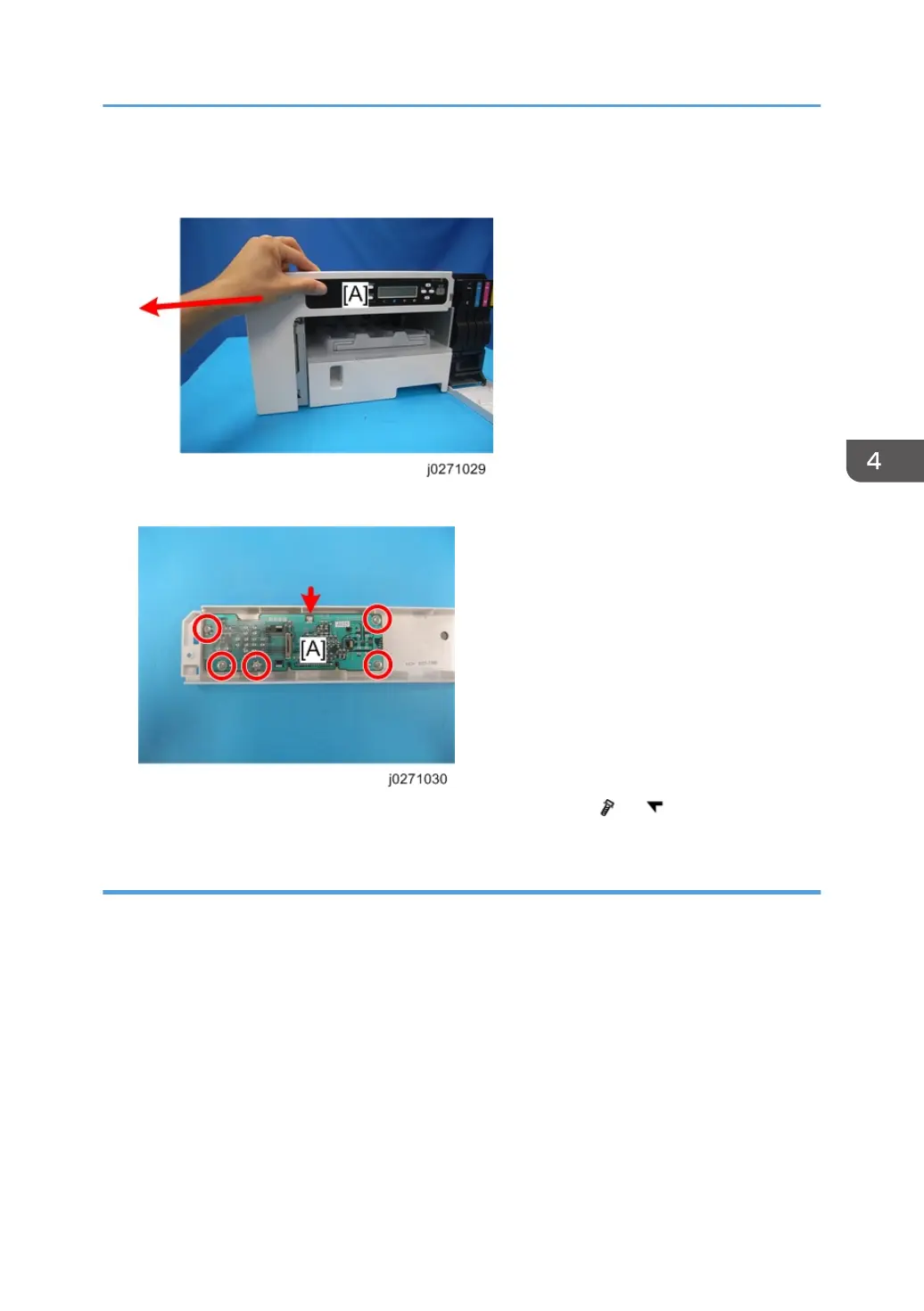

6. Slide the front cover [A] to the left to detach it.
7. Release the tabs and detach the operation panel board [A] ( x5, x1).
Re-assembly
Here are some points you should always check before re-attaching the covers.
Common Procedures
59
