Ricoh Aficio SG 7100DN - Clutches; Feed Clutch

Clutches
Feed Clutch

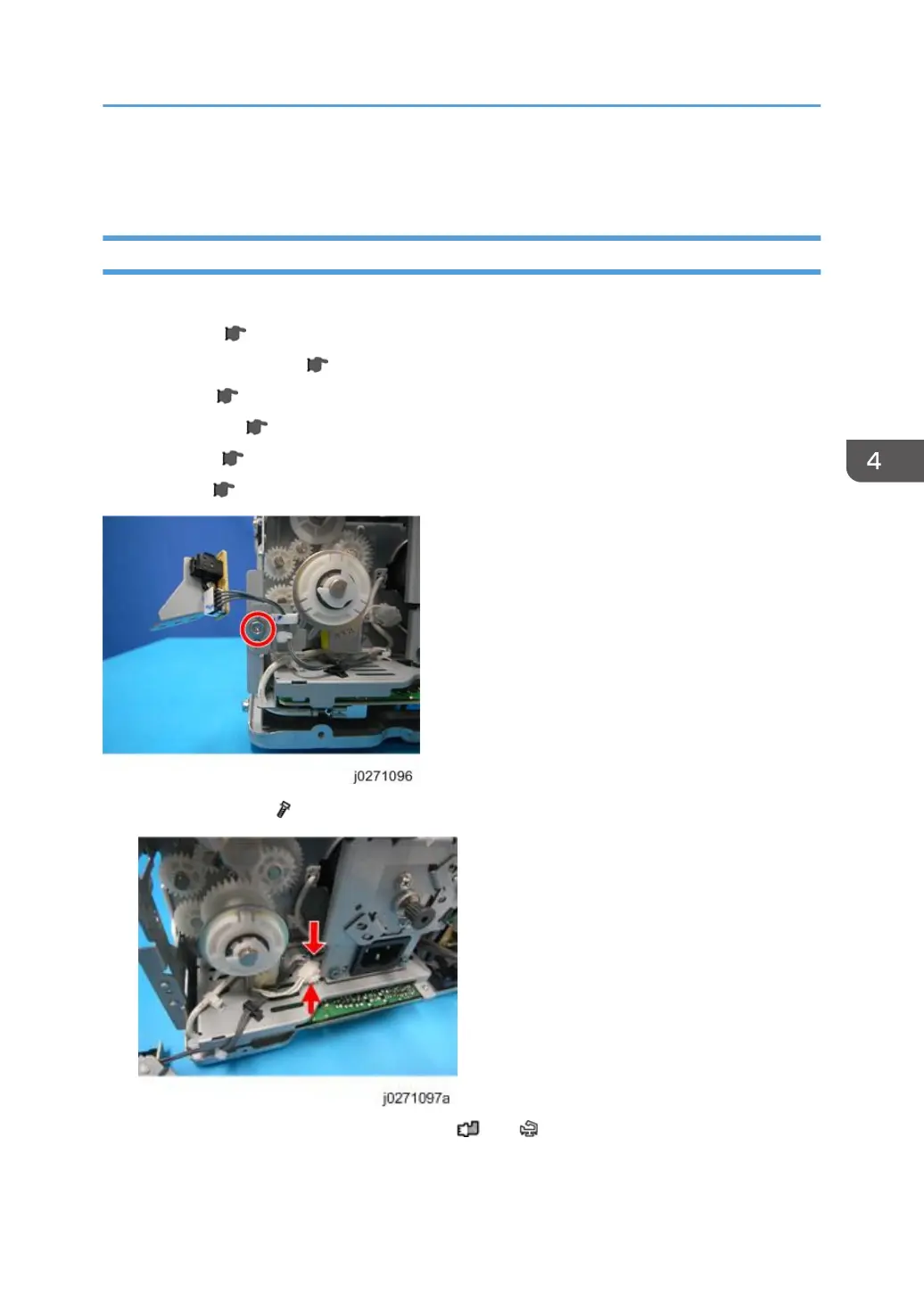

Preparation
• Duplex unit ( p.48)
• Vertical encoder wheel ( p.71)
• Top cover ( p.51 "Rear Cover, Top Cover")
• Canopy cover ( p.57)
• Rear cover ( p.51 "Rear Cover, Top Cover")
• Left cover ( p.56)
1. Remove the screw ( x 1).
2. Disconnect 1 connector and release 1 clamp ( x 1, x 1).
Clutches
93
