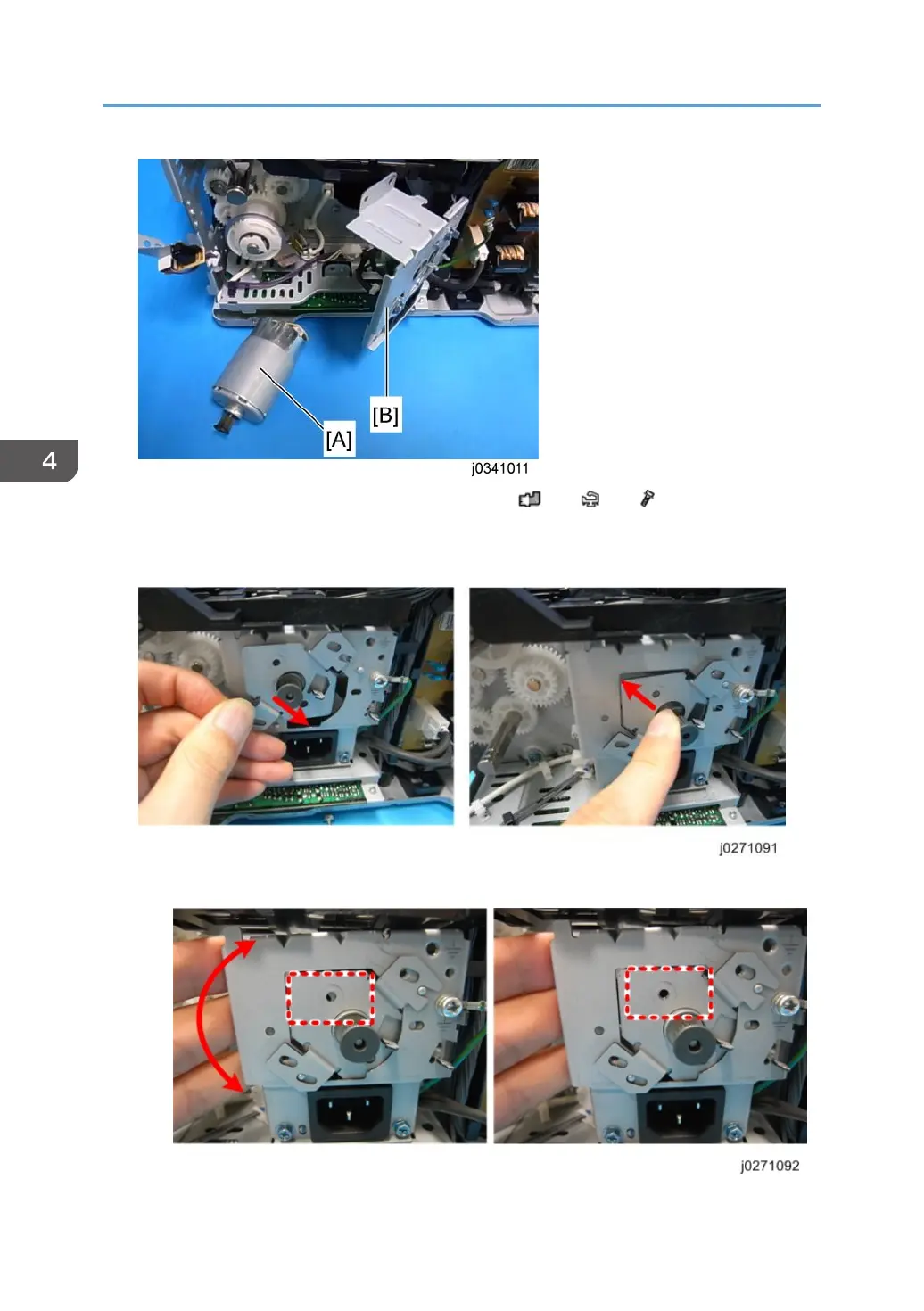

4. Remove the vertical motor [A] from the AC bracket [B] ( x 1, x 1, x 2).
Re-installation (when the motor bracket is removed.):
When you attach the parts, attach the motor bracket afterward.
1. As shown, slide the right bottom part in, and then slide the left top part in.
4. Replacement and Adjustment
90
