Ricoh Aficio SP 5200DN Training

SH-P1 Training
36
Slide 36

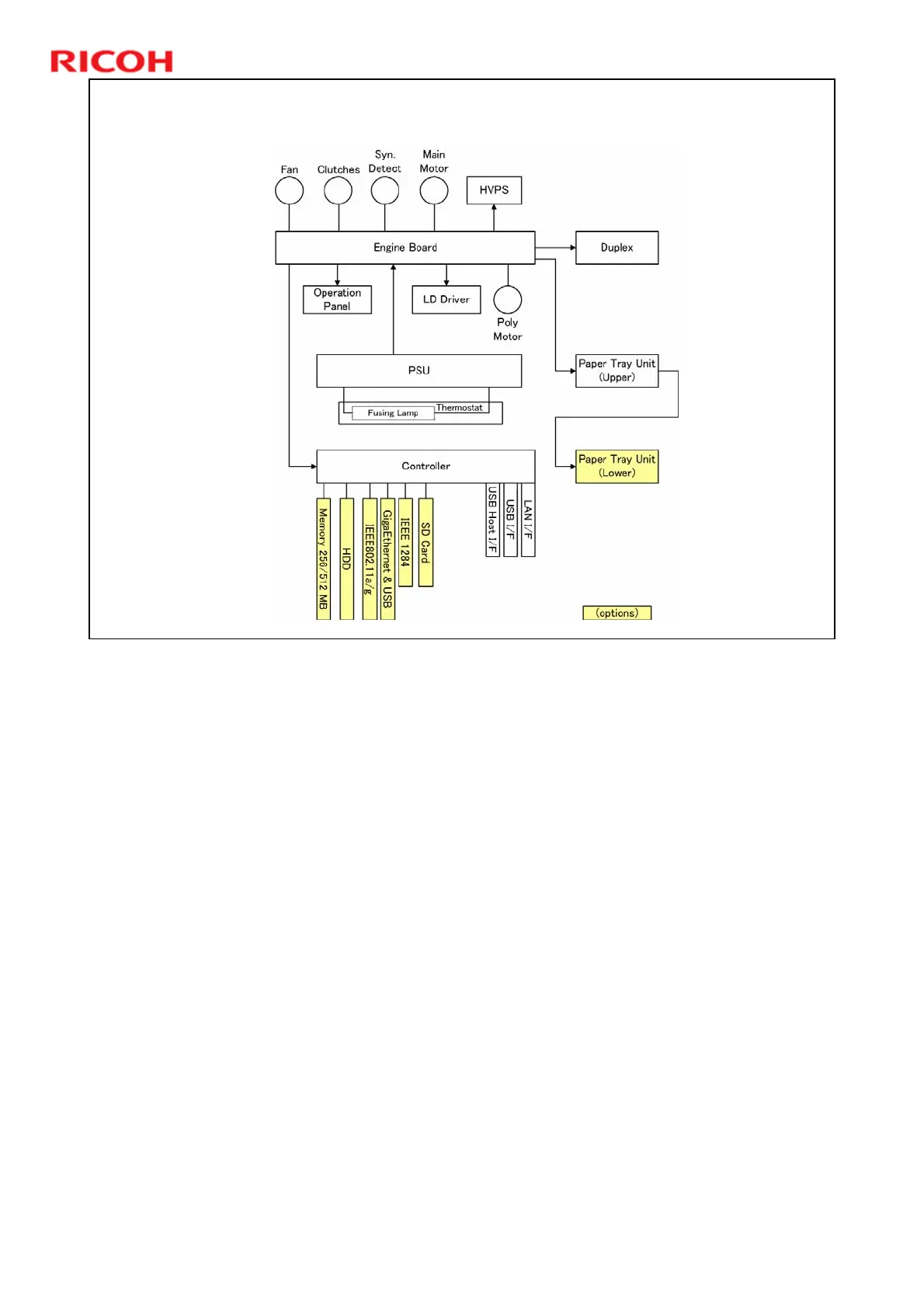

Board Structure
Engine Board:
 The engine board controls all the mechanical components and the following
functions:
¾ Engine sequence
¾ Engine operation
¾ Operation panel
Controller:
 The controller handles the following functions:
¾ HDD
¾ Network interface
¾ USB and SD cards
