Ricoh Aficio SP 5200DN - Fusing Drive

SH-P1 Training
77
Slide 77

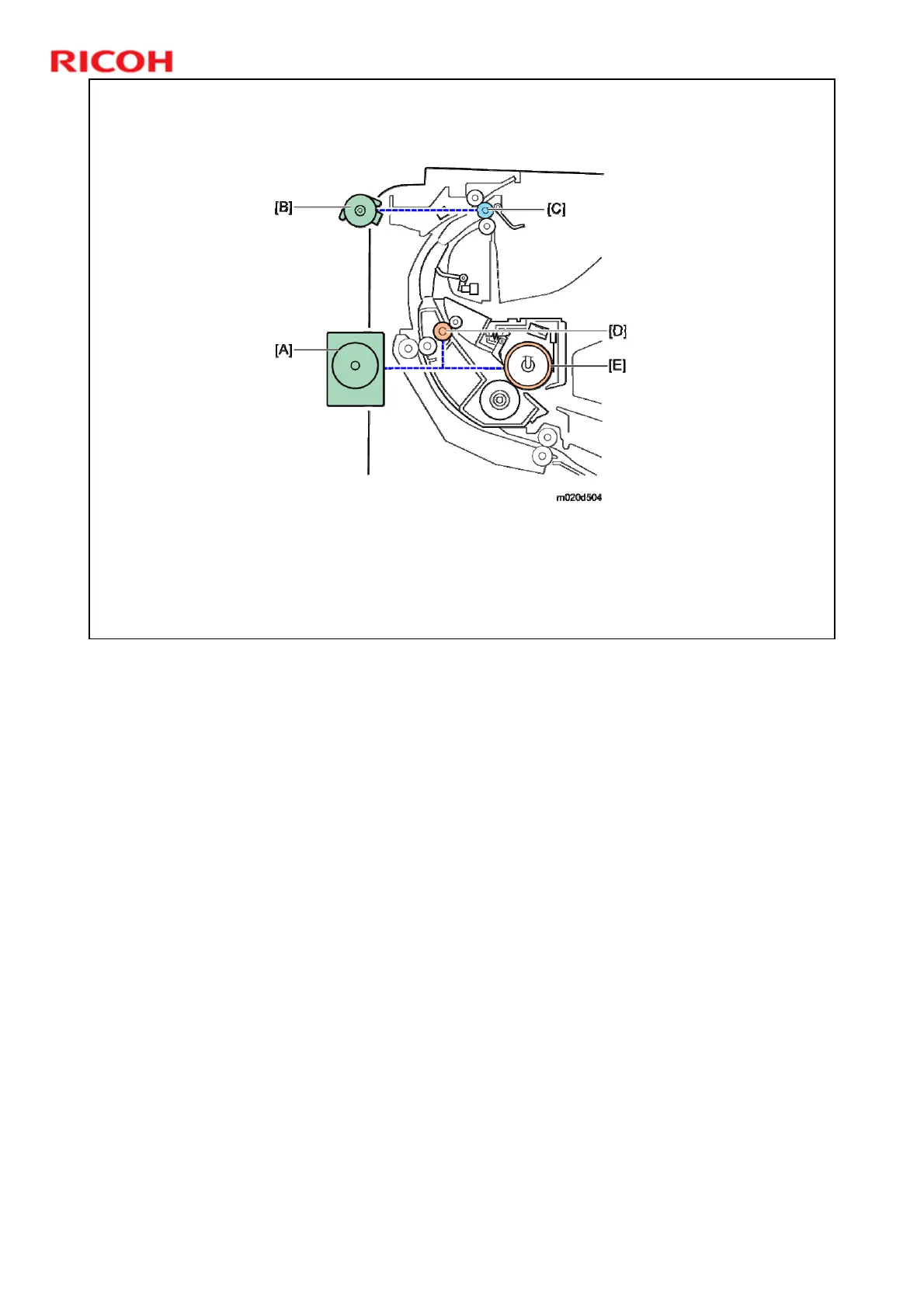

Fusing Drive
 The main motor [A] drives the hot roller [E] and the fusing exit
rollers [D].
 rollers [C] through a clutch [B] a gear train.
No additional notes.
