SH-P1 Training
76
Slide 76

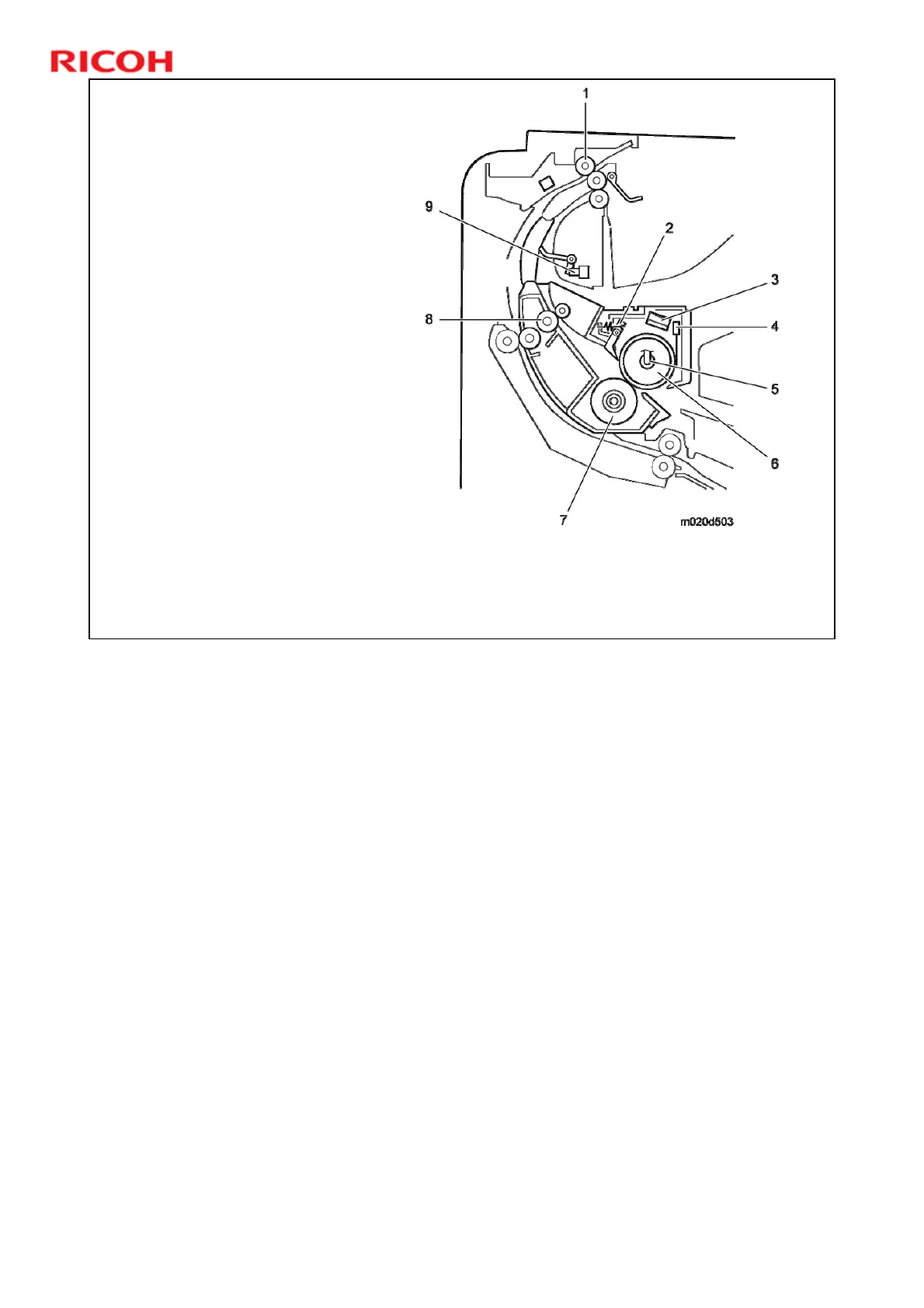

Fusing Overview
1. Paper exit roller
2. Hot roller strippers
3. Thermostat
4. Thermistor
5. Fusing lamp
6. Hot roller
7. Fusing pressure
roller
8. Fusing exit roller
9. Paper exit sensor
The hot roller and pressure roller fuse the toner image to the paper.
After fusing, the paper passes through the fusing exit rollers and the
paper exit rollers to the output tray. (See the Paper Exit section.)
The thermistor detects the temperature of the hot roller. (See the "Fusing
Temperature control" slide.)
The thermostat provides backup overheat protection.
To Next Page
