Ricoh Aficio SP 5200DN Training

SH-P1 Training
89
Slide 89
Inverter Mechanism – 1

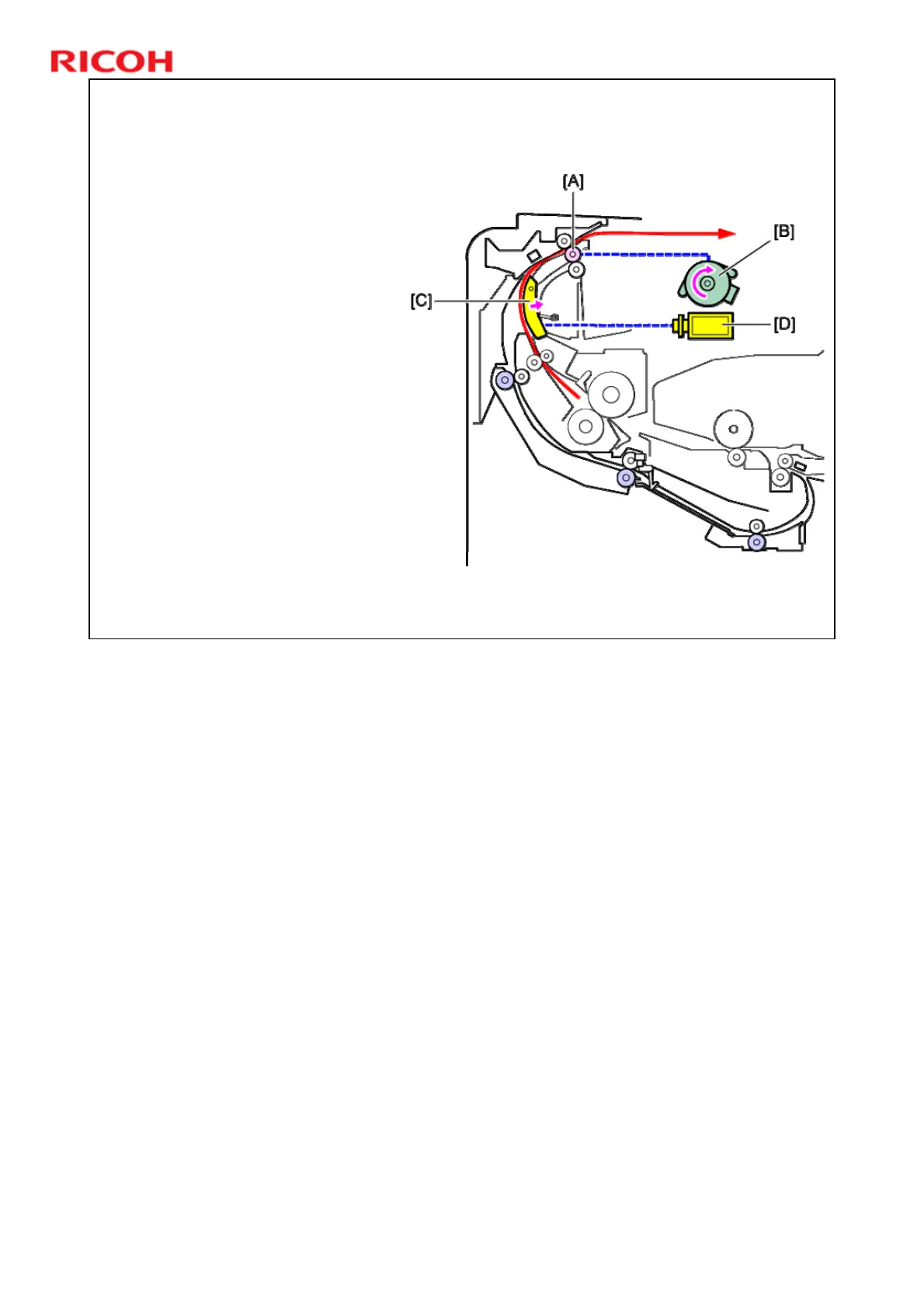

 When a duplex job is
sent to the machine,
junction gate solenoid
[D] moves the junction
gate [C] and opens the
paper path to the
inverter section.
 The sheet of paper is
fed above the exit
rollers [A], which are
driven clockwise by
the paper exit motor
[B] at this time.
No additional notes.
