SH-P1 Training
90
Slide 90

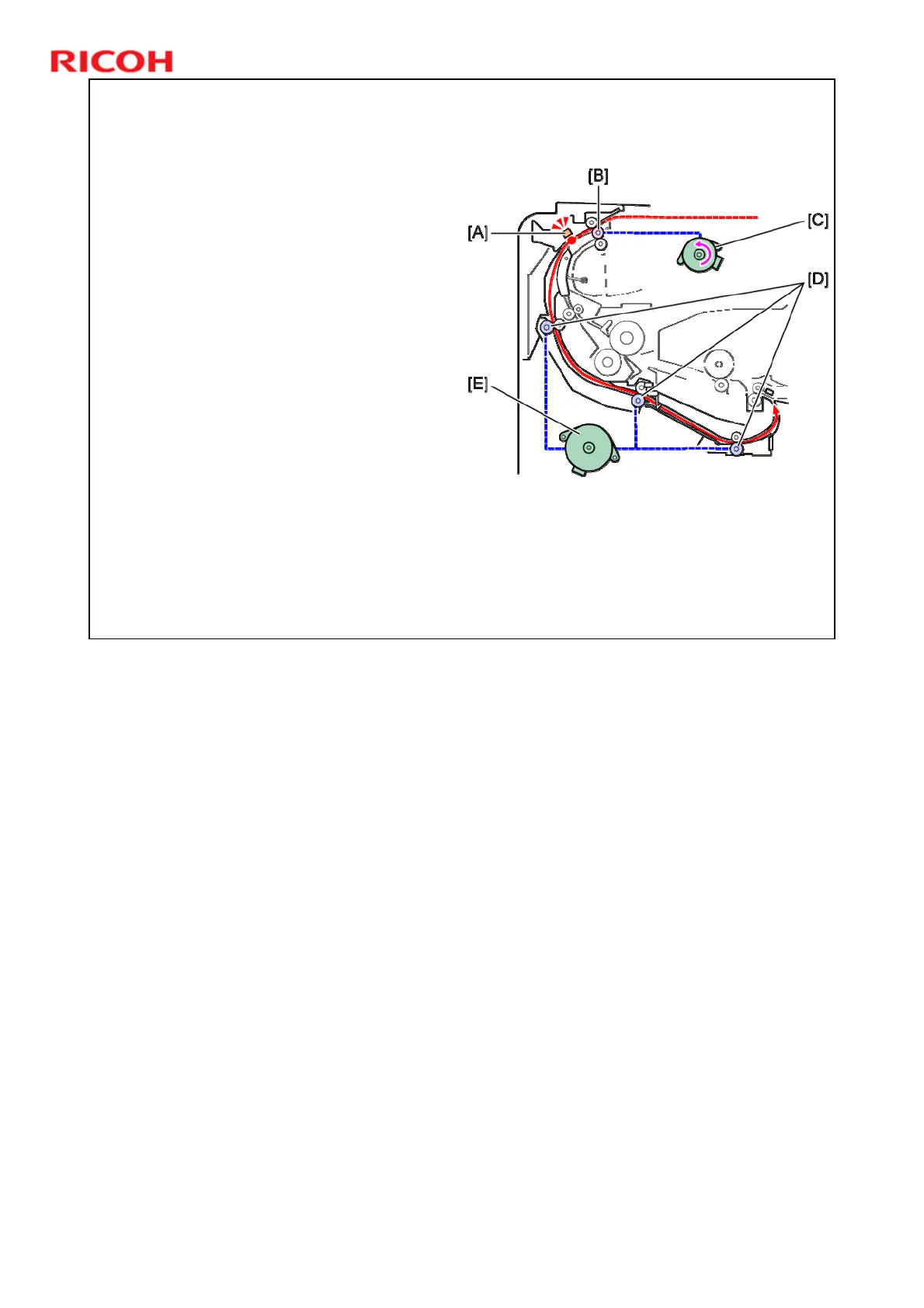

Inverter Mechanism – 2
When the duplex inverter sensor [A]
detects the trailing edge of paper,
the paper exit motor [B] reverses.
The paper is switched back, and fed
to the duplex path.
The paper is transported by the
duplex transport rollers [D] which
are driven by the duplex motor [E].
The paper arrives at the registration
rollers with the reverse side up. The
junction gate solenoid turns off.
After an image is printed and fused
on the reverse side, the paper goes
to the paper exit. The paper exit
rollers are rotating
counterclockwise; so the paper
goes to the output tray.
No additional notes.
