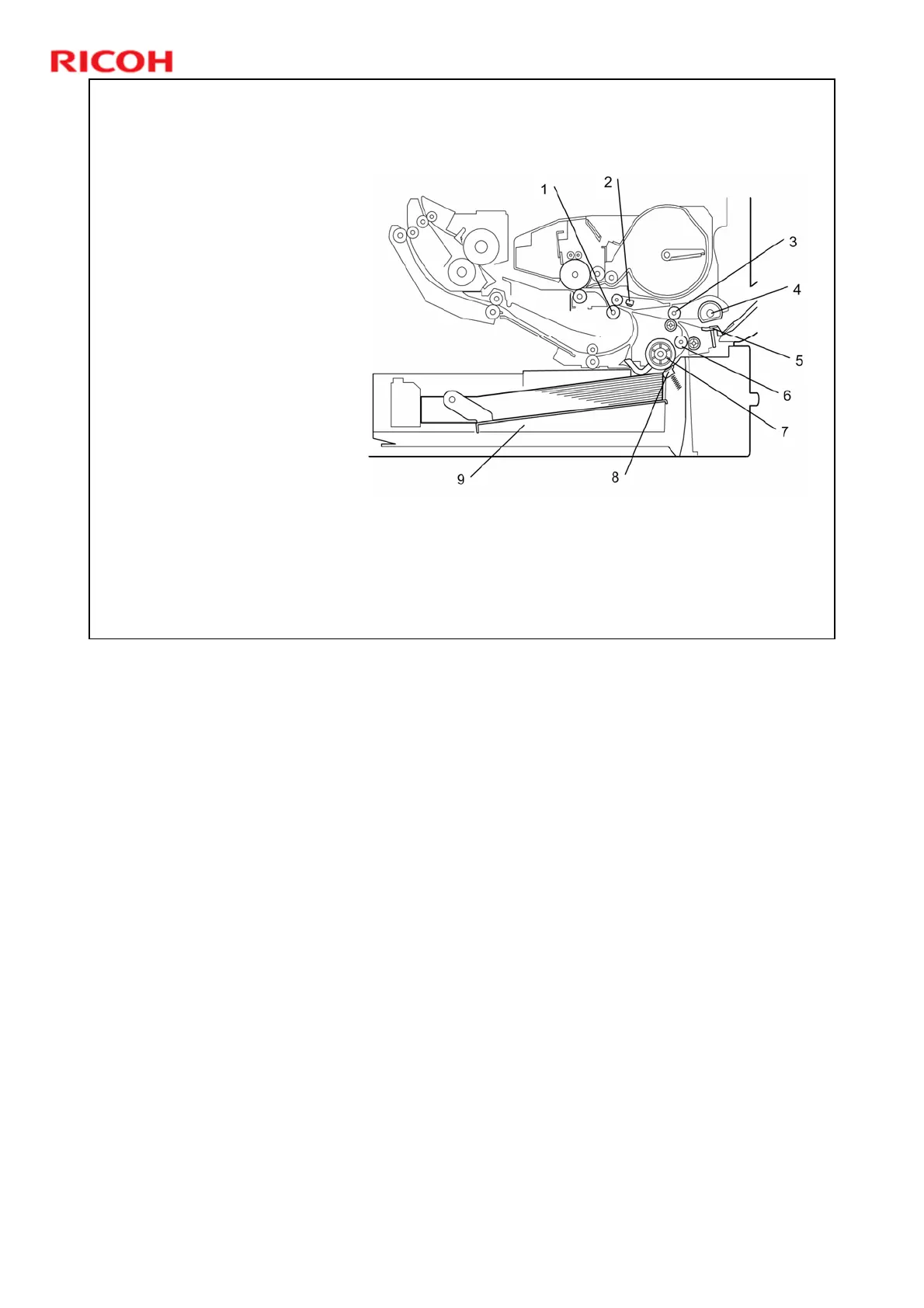

Paper Feed Components
 The trays and by-pass all use a friction pad feed
mechanism.
1. Registration Rollers
2. Registration sensor
3. Upper relay rollers
4. By-pass feed roller
5. By-pass friction pad
6. Lower relay rollers
7. Tray feed roller
8. Friction pad
9. Paper tray
Additional notes:
 The friction pad cannot be adjusted.
 The machine makes the paper buckle at the registration rollers to correct paper
skew.
 The paper buckle can be adjusted for each paper type with SP 1003.
