Paper Lift

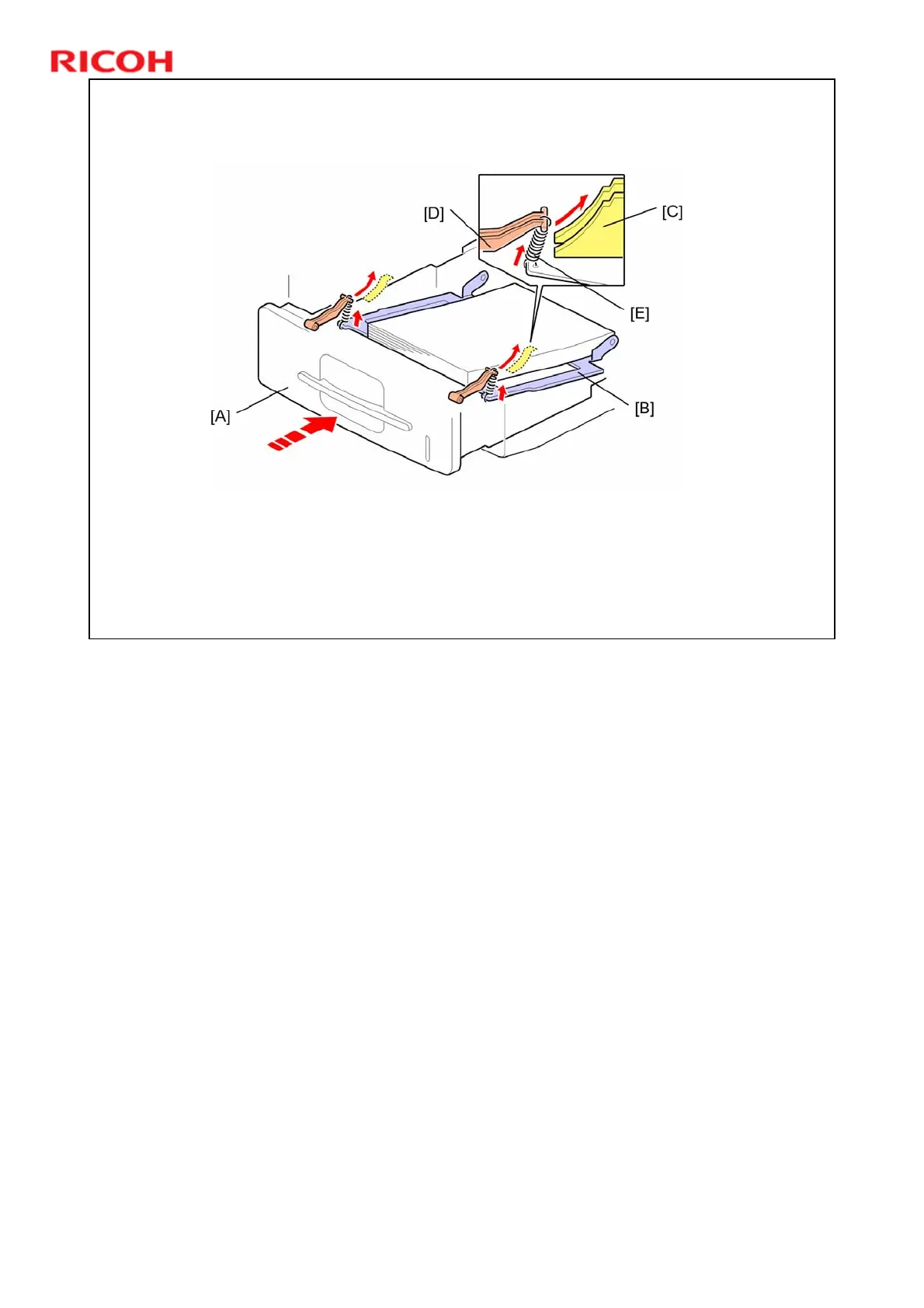

 When the tray [A] is pushed into the machine, the bottom
plate [B] lifts as follows.
 The slopes on the guide blocks [C] on the machine lift up the tray
arms [D].
 The springs [E] between the tray arms and bottom plate lift the plate.
