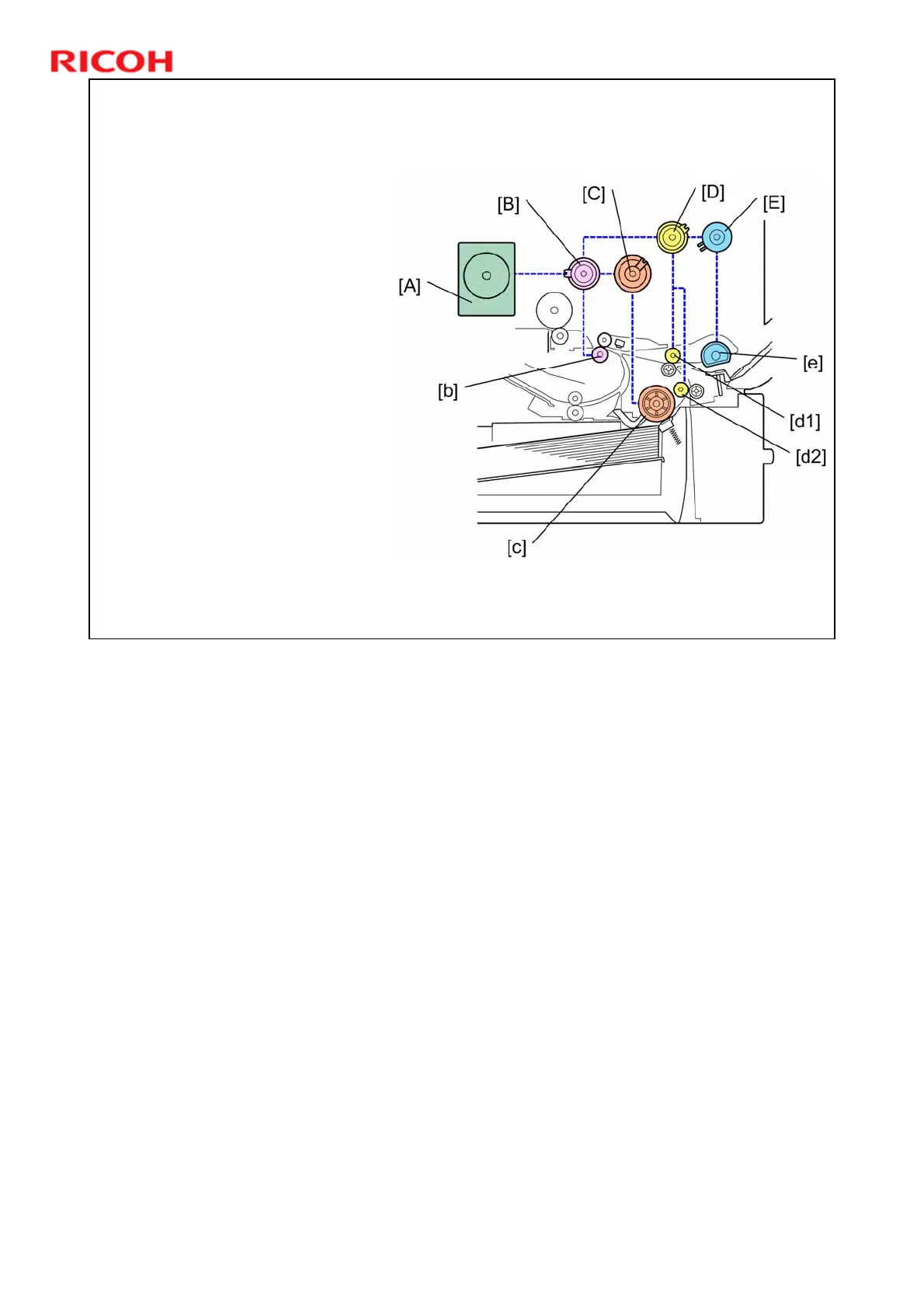

Paper Feed Drive
 The main motor [A]
drives all rollers related
with the paper feeding
via gears and clutches.
Each clutch corresponds
with a roller as follows:
 Registration clutch [B]:
Registration roller [b]
 Paper feed clutch [C]:
Feed roller [c]
 Relay clutch [D]: Upper
relay roller [d1] and
lower relay roller [d2]
 By-pass feed clutch [E]:
By-pass feed roller [e]
No additional notes.
