Ricoh Aficio SP C240SF - Page 55

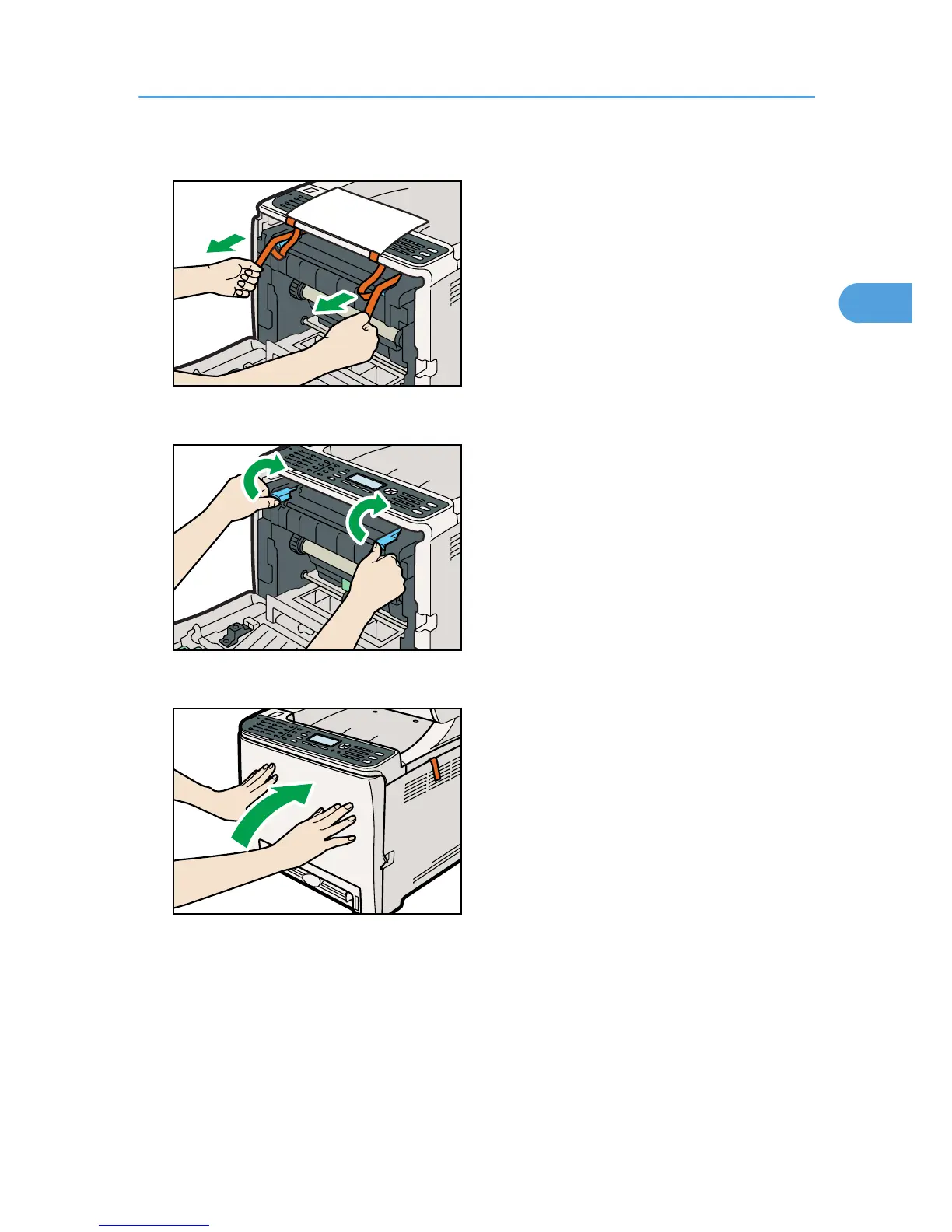

13. Pull the tapes gently upward and remove them from the machine at the same time.
CES162
14. Pull up the fusing unit levers.
CES258
15. Using both hands, carefully push up the front cover until it closes.
CES260
16. Pull up the top cover open lever, and then open the top cover carefully.
Make sure that the ADF is closed.
Installing the Machine
53
2
