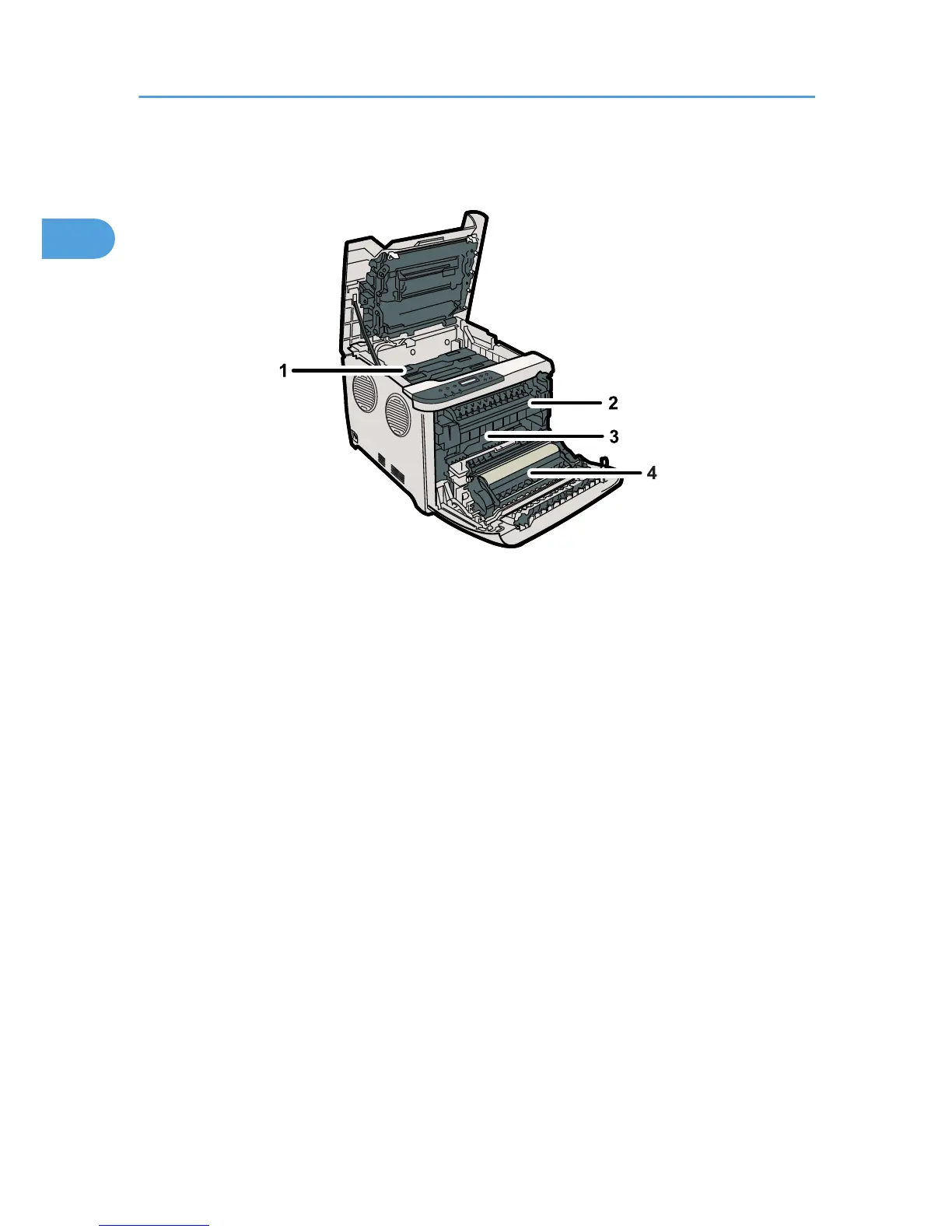

1. Print Cartridge
Loads from the printer rear, in the order of cyan (C), magenta (M), yellow (Y), and black (K).
If the following message appears on the control panel, replace the print cartridge:
"Replace Toner:"
2. Fusing Unit
Fuses toner to the paper.
You might have to handle this unit to check for or remove jammed paper.
If the following message appears on the control panel, contact your service representative to replace the
fusing unit:
"Replace Fusing Unit"
3. Waste Toner Bottle
Collects toner that is wasted during printing.
If the following message appears on the control panel, replace the waste toner bottle:
"Replace Waste Toner Bottle"
4. Transfer unit
Removes to change a waste toner bottle.
If the following message appears on the control panel, contact your service representative to replace the
fusing unit.
"Replace Transfer Roller"
1. Guide to the Printer
18
