The following is the replacement procedure for the yellow drum unit located at the left end. This procedure

applies to the replacement of other drum units.

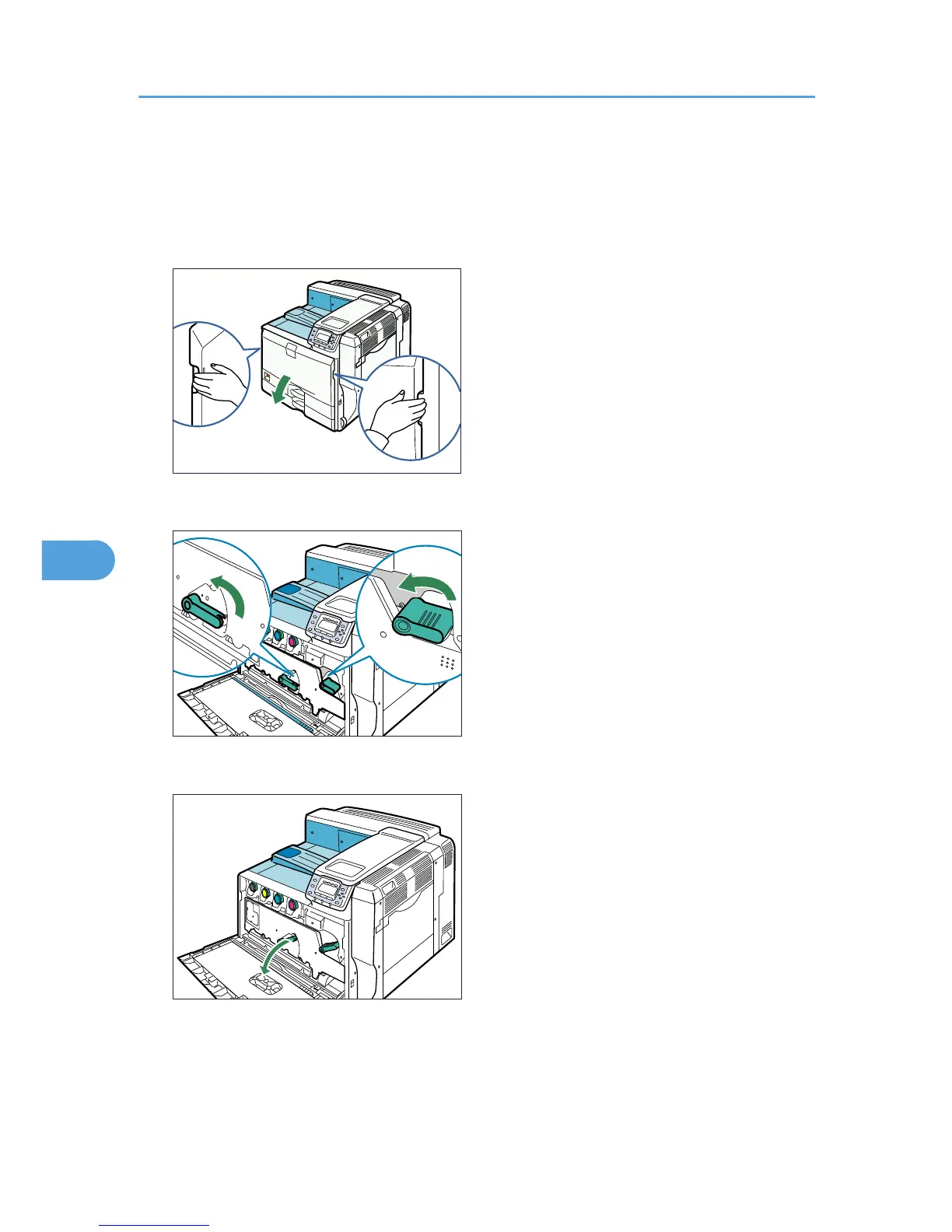

1. Turn off the printer and unplug the power cable.

2. Holding the left and right side grips, carefully open the front cover.

BMV060S

3. Turn the two green levers counterclockwise.

BMV065S

4. Pulling the handle, slowly open the inner cover.

BMV066S

The drum units are installed as shown. From the left, the units are attached in the order of yellow (Y),

cyan (C), magenta (M), and black (K).

6. Replacing Consumables

144
