Interior

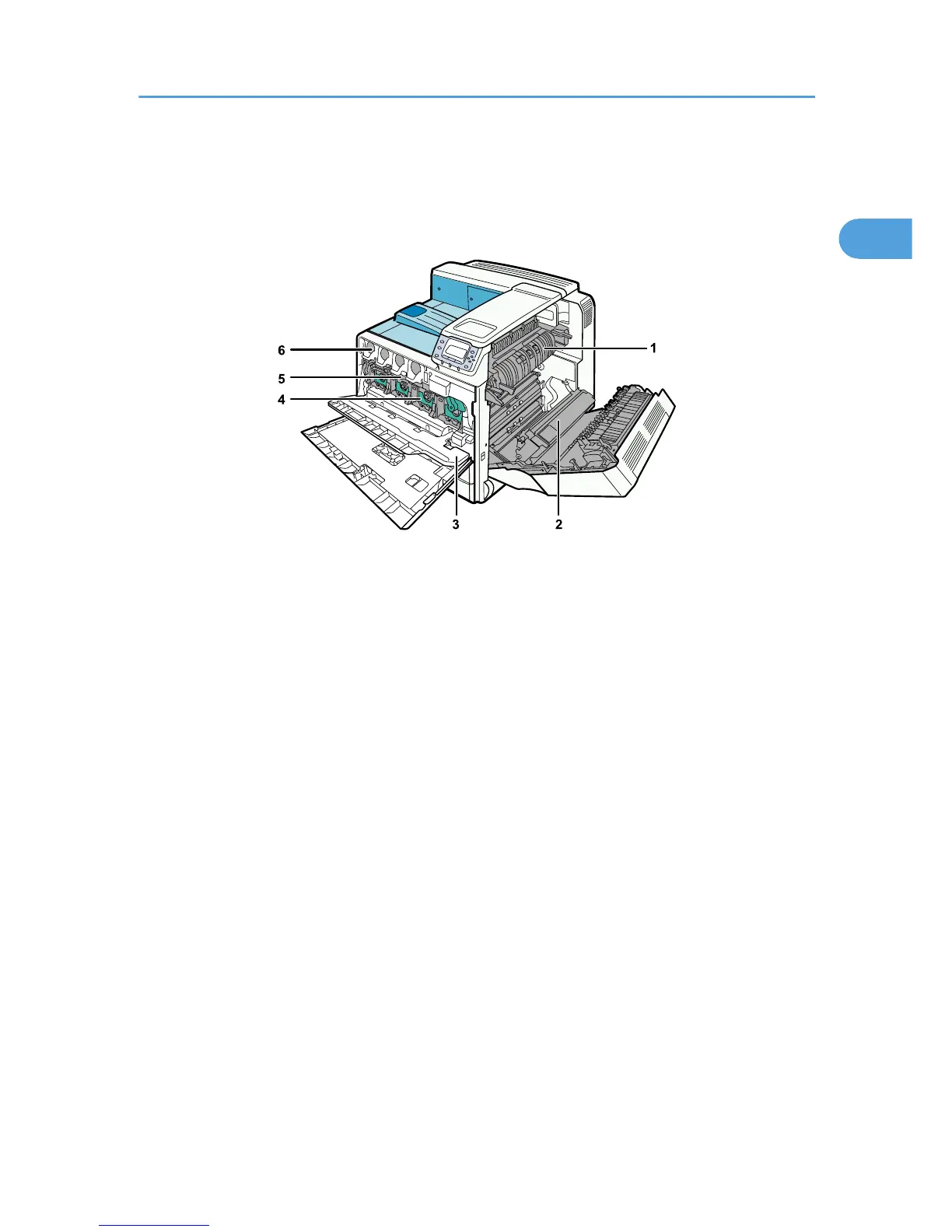

This section explains names and functions of the parts inside of the printer.

BMV005S

1. Fusing Unit

Replace the fusing unit when the following messages appear:

• "Replace Fusing Unit."

Replace the fusing unit and the transfer roller together.

2. Transfer Roller

Replace the transfer roller when the following messages appear:

• "Replace Fusing Unit."

Replace the transfer roller and the fusing unit together.

3. Inner Cover

Open this cover when replacing the black drum unit/color drum units or transfer unit.

4. Black Drum Unit/Color Drum Units

From the left, the drum units are installed in the order of yellow (Y), cyan (C), magenta (M), and black (K). Replace

the relevant black drum unit/color drum units when the following messages appear:

• "Replace PCU:Black."

• "Replace PCU:Color."

5. Transfer Unit

Replace the transfer unit when the following messages appear:

• "Replace IntTrans Unit soon."

• "Replace IntTrans Unit."

6. Toner

From the left, the toner is installed in the order of black (K), yellow (Y), cyan (C), and magenta (M).
