Paper Misfeed Message (D)

The " D Read instructions in Front Cover to remove." error message appears when a paper misfeed occurs

while paper is being fed.

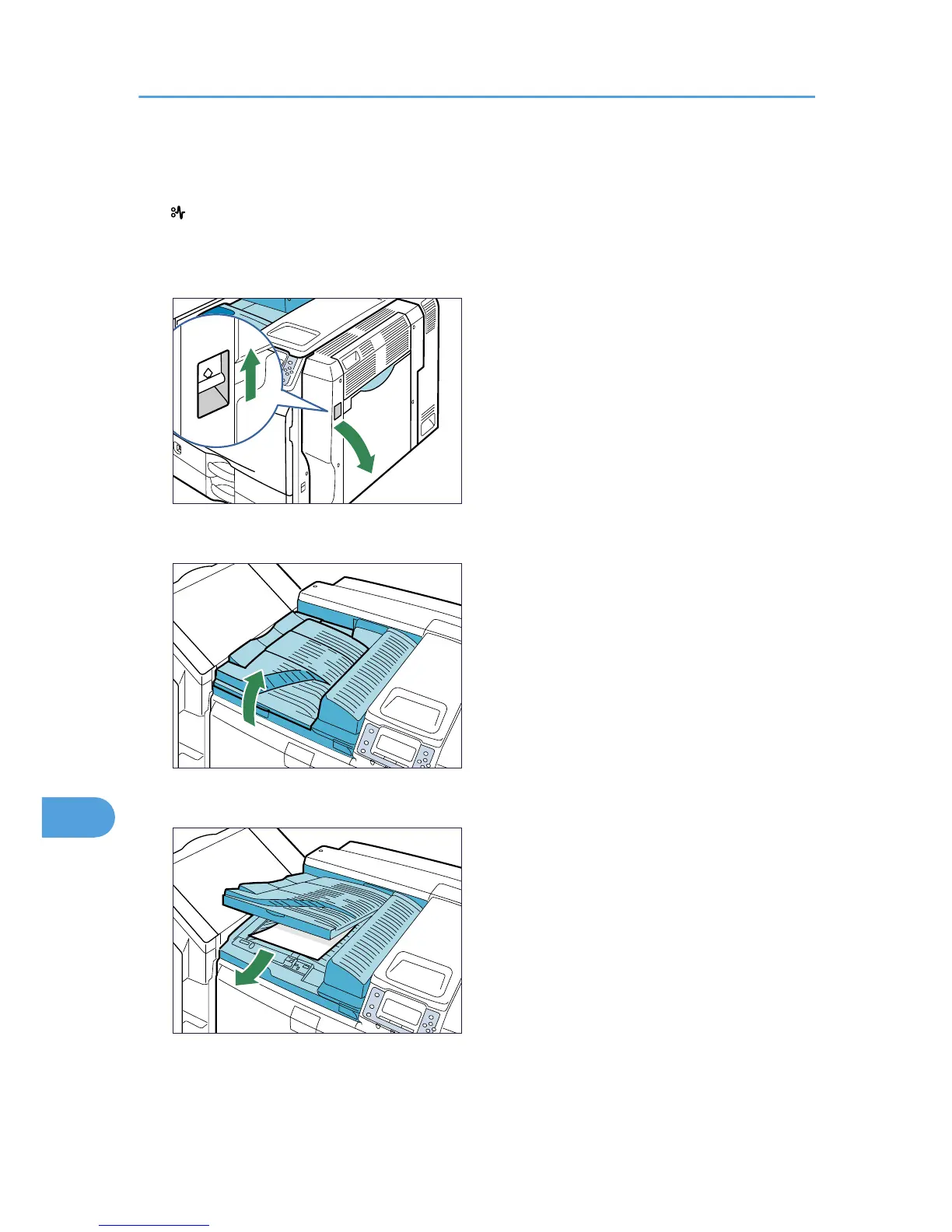

1. Push up the lever on the right side, and open the printer's right cover carefully.

BMV103S

2. Open the left cover of the bridge unit.

BEK045S

3. Remove the paper.

BEK046S
