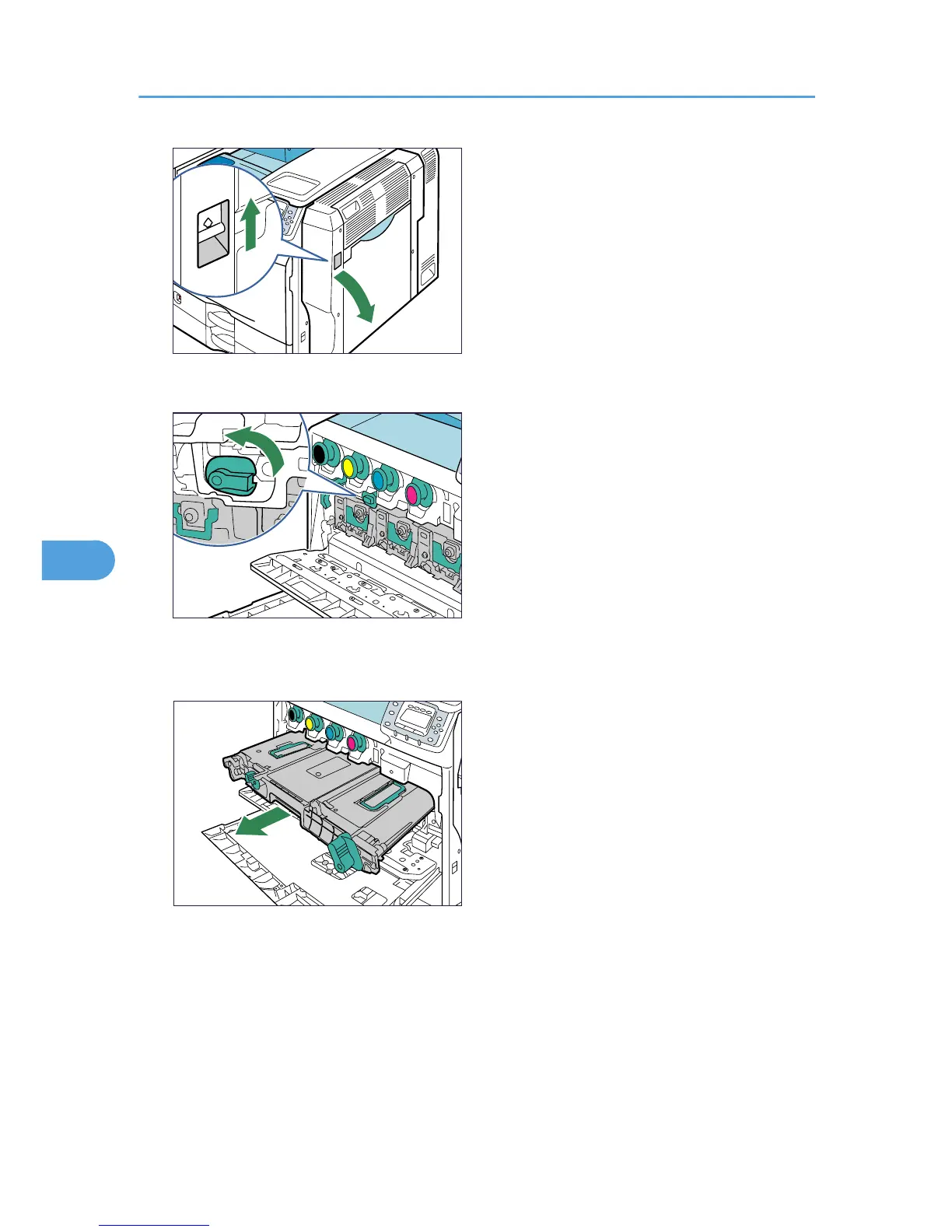

6. Turn the green lever located on the left side of the transfer unit counterclockwise.

BMW005S

7. Holding the green grip in the center of the transfer unit, pull the unit out until the handles on

the top surface become completely visible.

BMW006S

6. Replacing Consumables

152

Operating Instructions1
