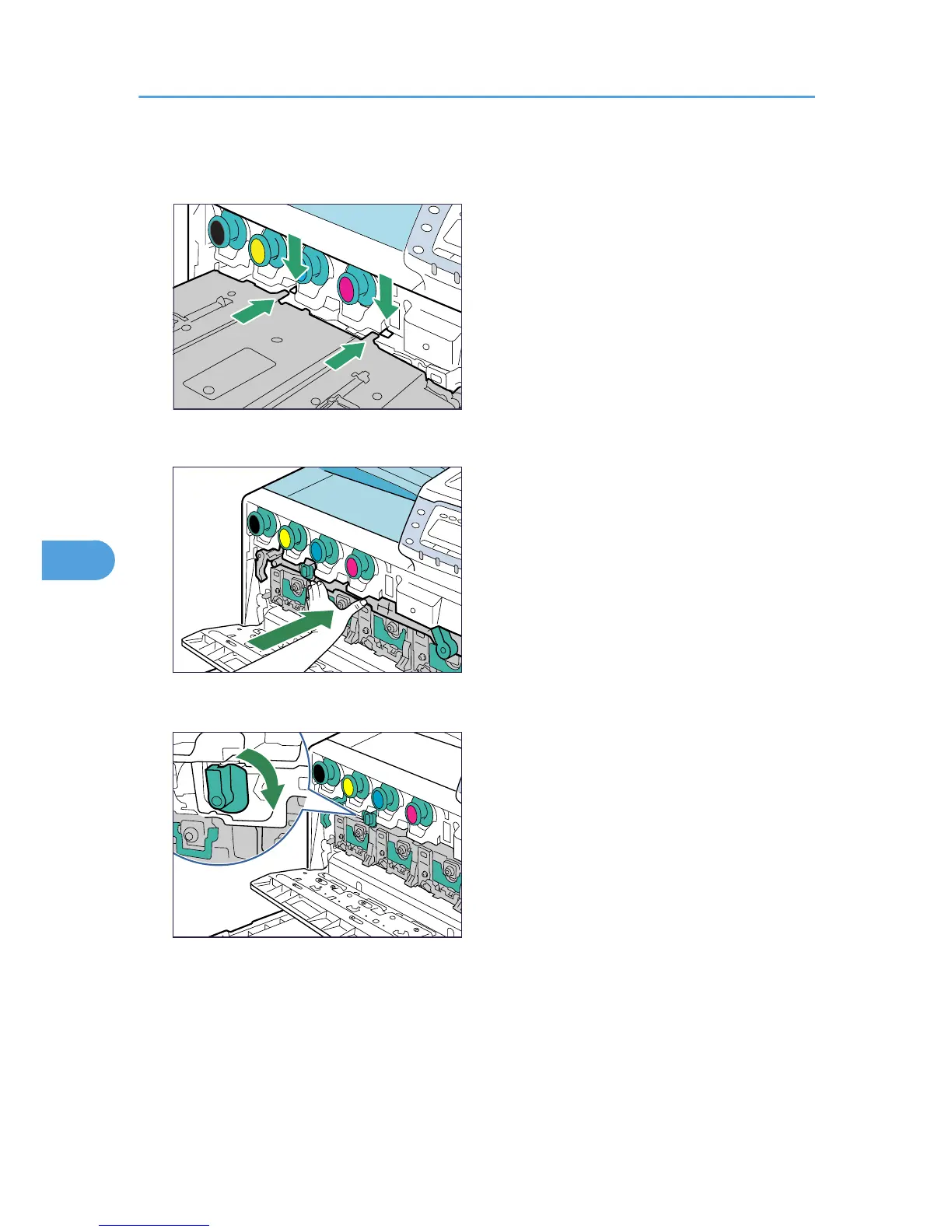

12. Slide the transfer unit along the guide rails into the printer until the upper handles touch the

printer body.

BMV010S

13. Lower the handles, and then push the front of the transfer unit to fully insert it into the printer.

BMW011S

14. Turn the green lever on the left side of the transfer unit clockwise.

BMW012S
