Ricoh Aficio SP C820DN

To Next Page

To Previous Page

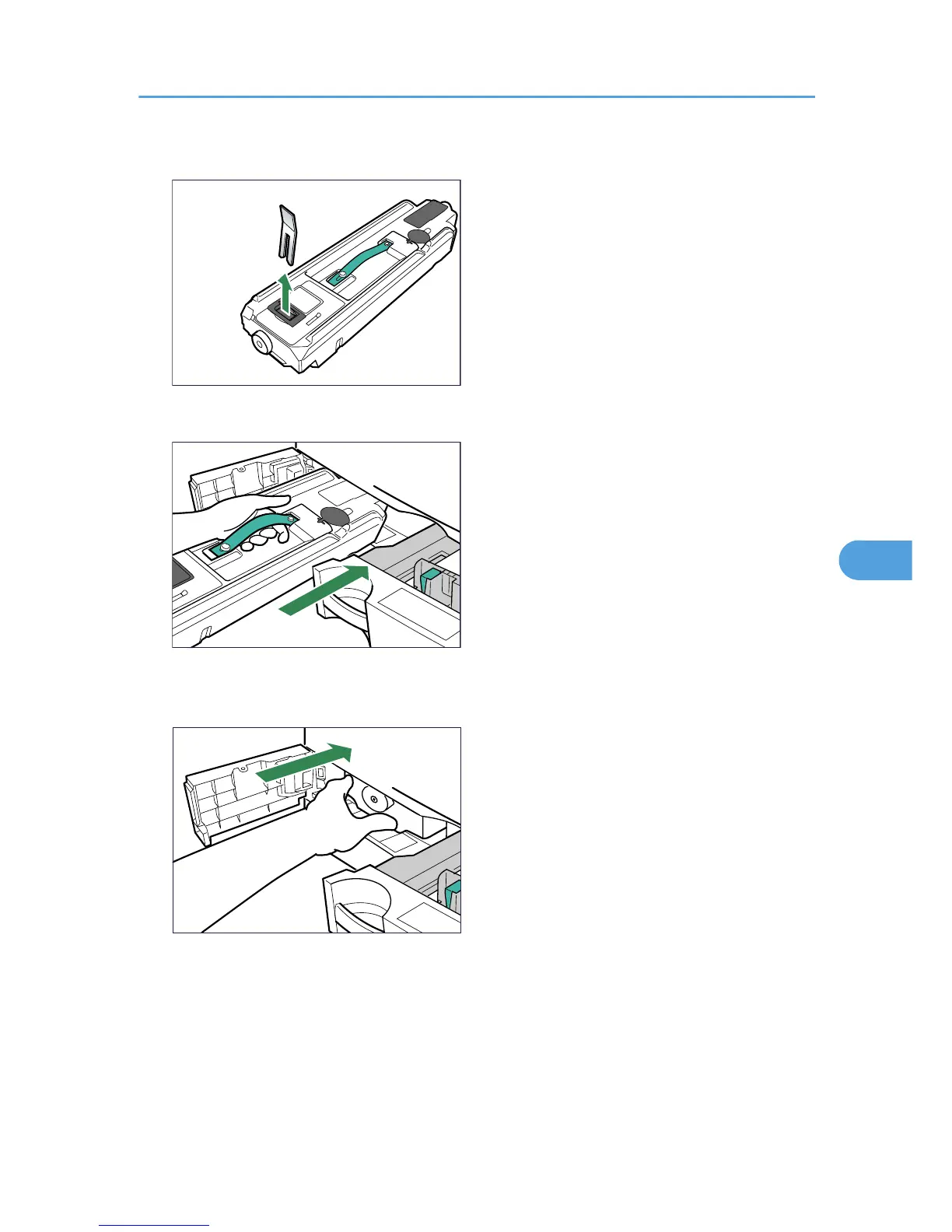

9. Slowly pull the thick paper out of the waste toner bottle vertically.

BMV084S

10. Holding the handle on the top, insert the waste toner bottle into the printer carefully.

BMV085S

11. When the waste toner bottle is inserted to the handle area, push the front side of the waste

bottle to fully insert it into the printer.

BMV086S

Replacing the Waste Toner Bottle

159
