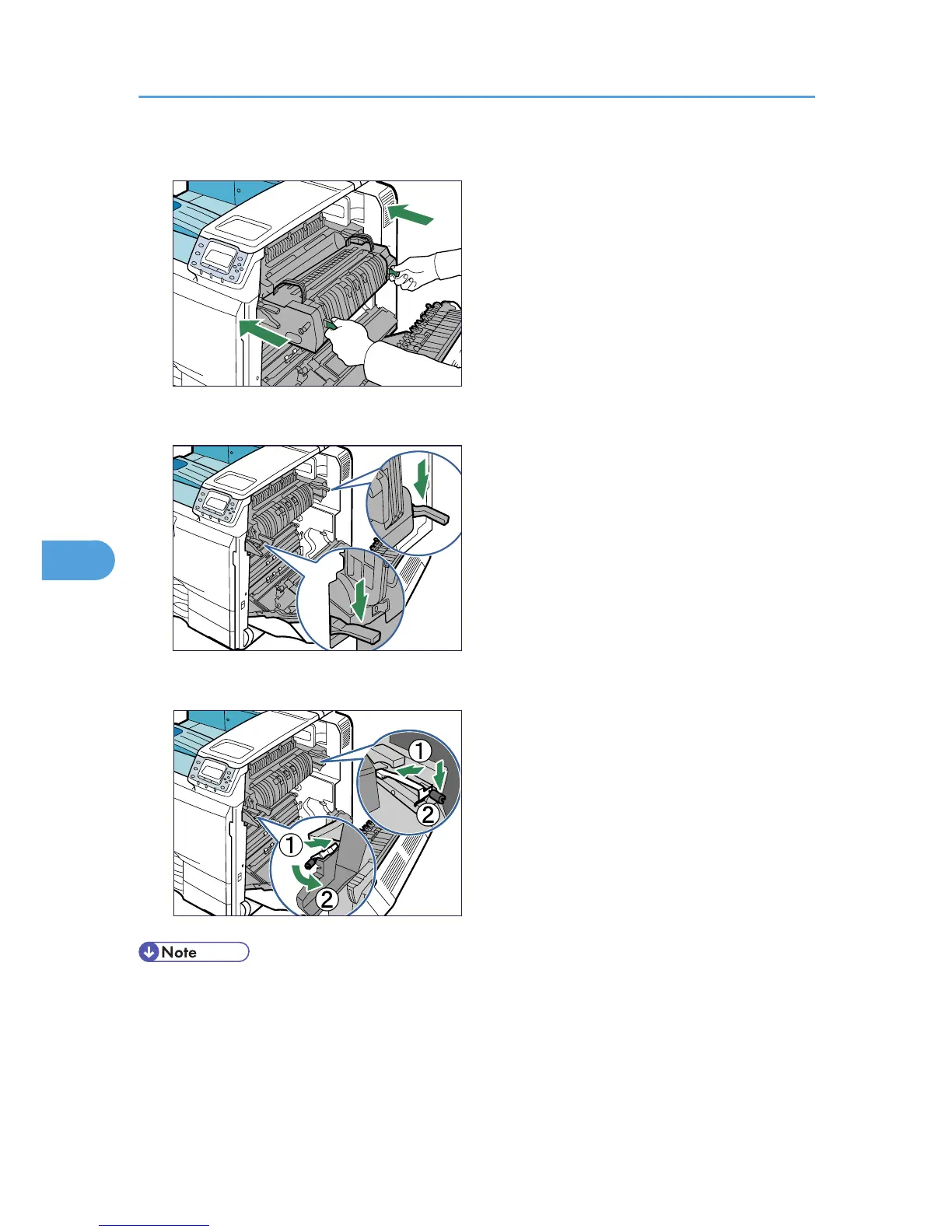

10. Push the fusing unit back into the printer carefully until it completely stops.
BMV119S
11. Push down the C1 levers on both sides.
BMV244S
12. Reattach the brackets to both sides of the fusing unit and tighten the screws.
BMV258S
• This completes fusing unit replacement. Leave the right cover open, replace the transfer roller and the
dustproof filter as shown below.
