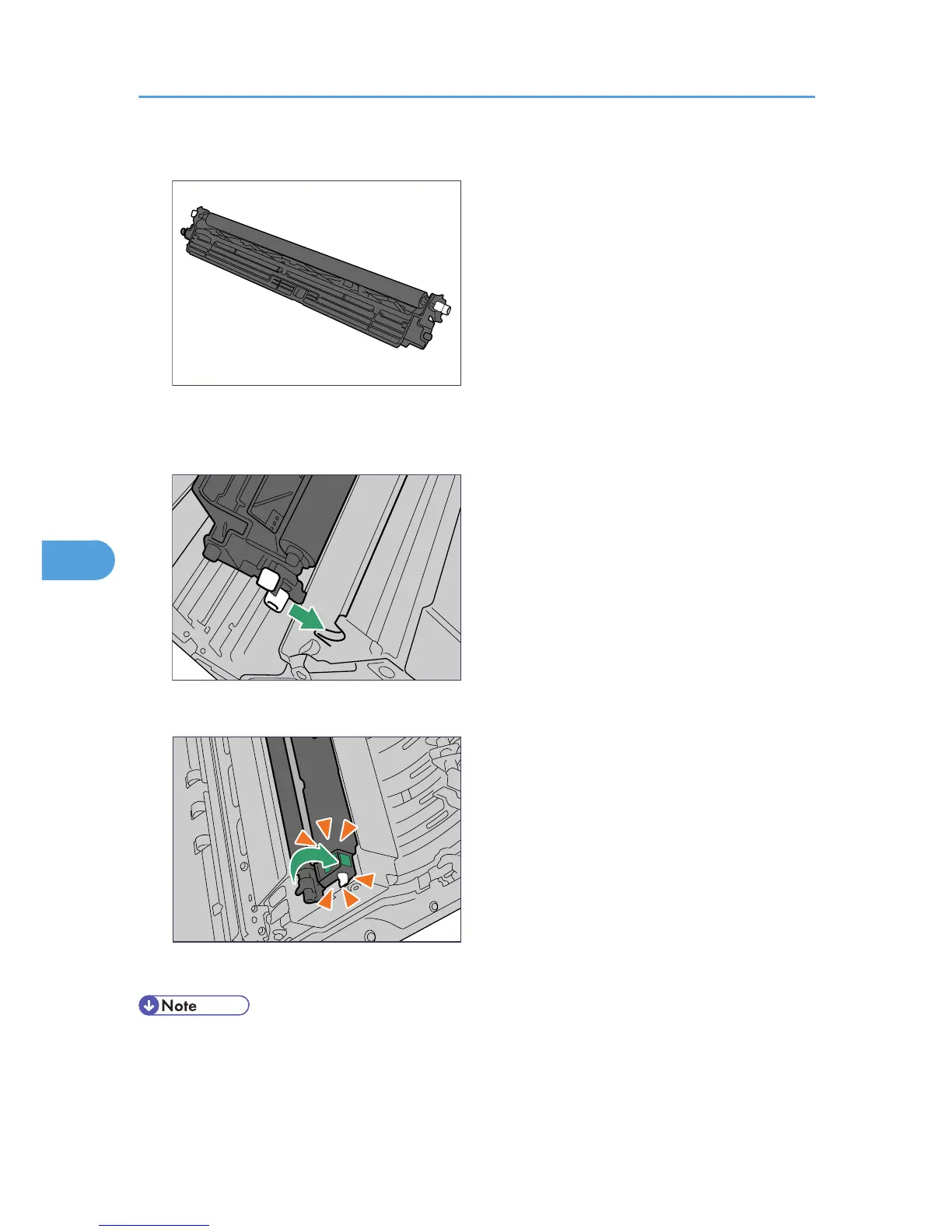

4. Take the new transfer roller out of the bag.

BMW022S

Hold the grips on both sides of the transfer roller.

5. Place the transfer roller into the grooves of the printer.

BMW023S

6. Secure the transfer roller by pushing the green grips on both sides until it locks into place.

BMW024S

7. Carefully close the right cover.

• This completes the transfer roller replacement. Follow the next procedure to replace the dustproof

filter as shown below.

6. Replacing Consumables

166
