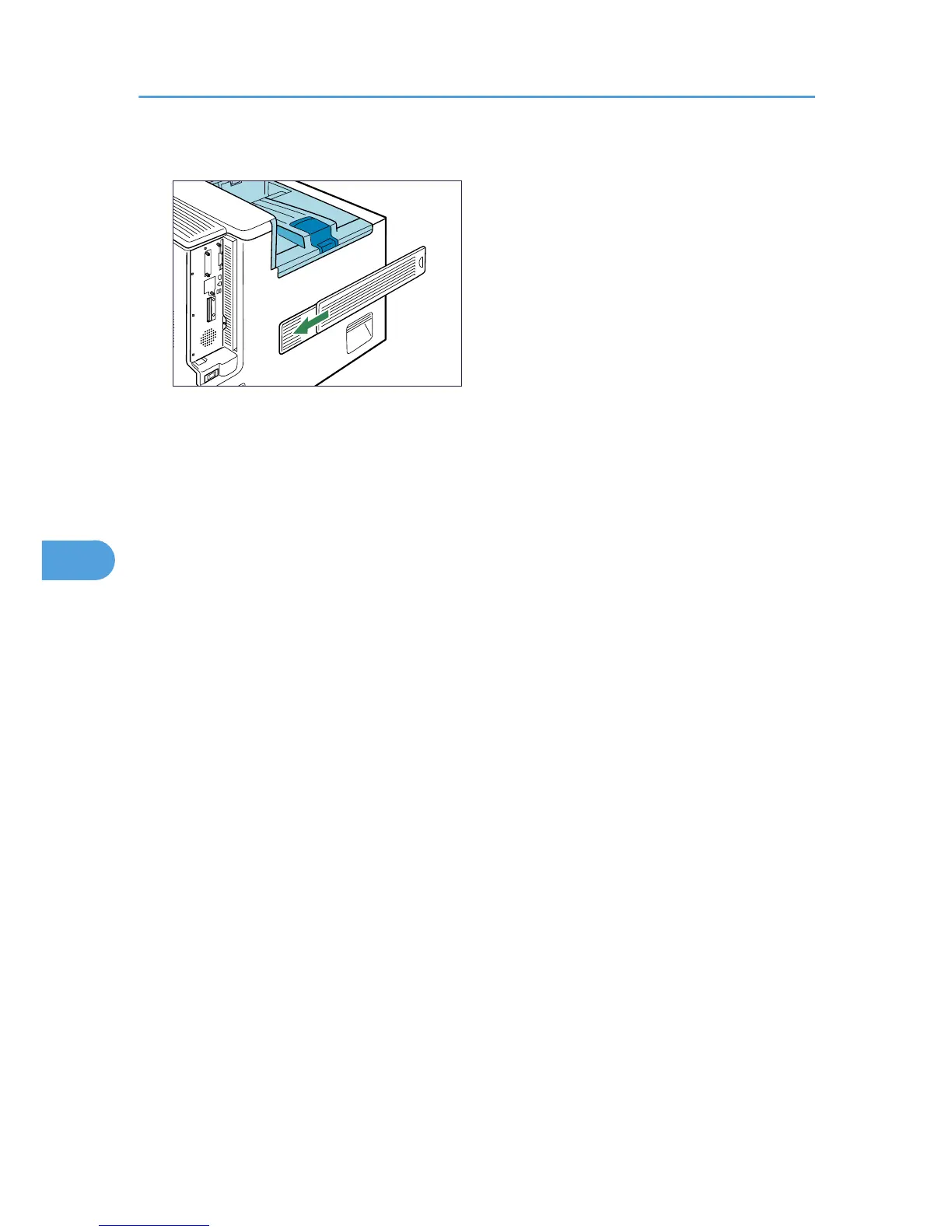

7. Slide the dustproof filter cover back to its original position.

BMW018S

8. Plug in the power cable and turn on the printer.

6. Replacing Consumables

168
