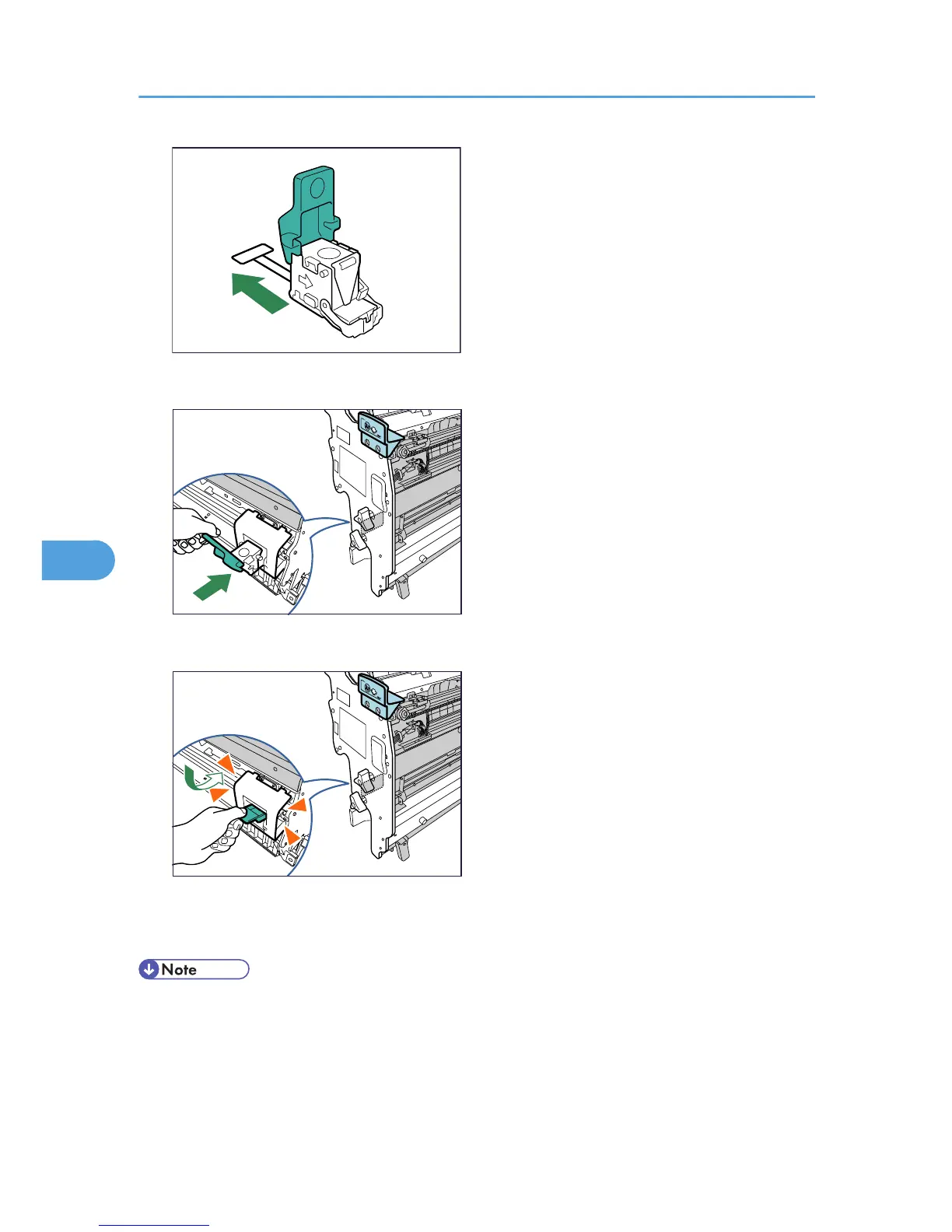

10. Holding the lever on the cartridge, push the cartridge gently into the staple unit until it clicks.

BMV092S

11. Push the lever down until it clicks.

BMV093S

12. Return the staple unit to its original position.

13. Close the front cover of the finisher.

• If you cannot pull out the upper unit there are staples remaining inside the cartridge. Use all the staple

before replacing the cartridge.

6. Replacing Consumables

172
