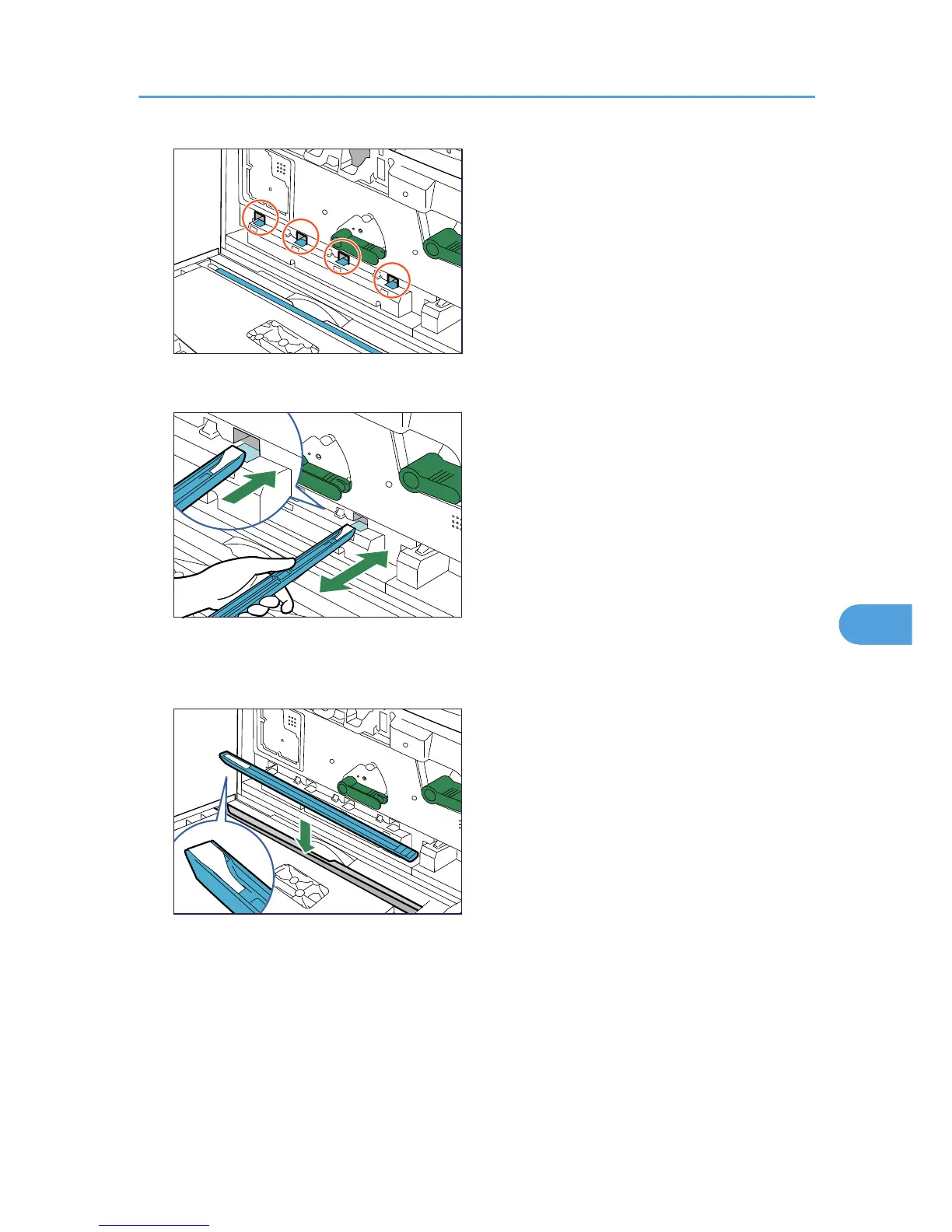

4. Place the cleaning stick back inside the front cover.

BMV107S

Clean all holes.

5. Return the cleaning stick inside the front cover.

BMV108S

Be sure the cloth tape faces down when you replace the stick.

6. Close the front cover carefully.

7. Plug in the power cable and turn on the printer.

Cleaning the Dustproof Glass

183
