5.
Press the [OK] key.
6.

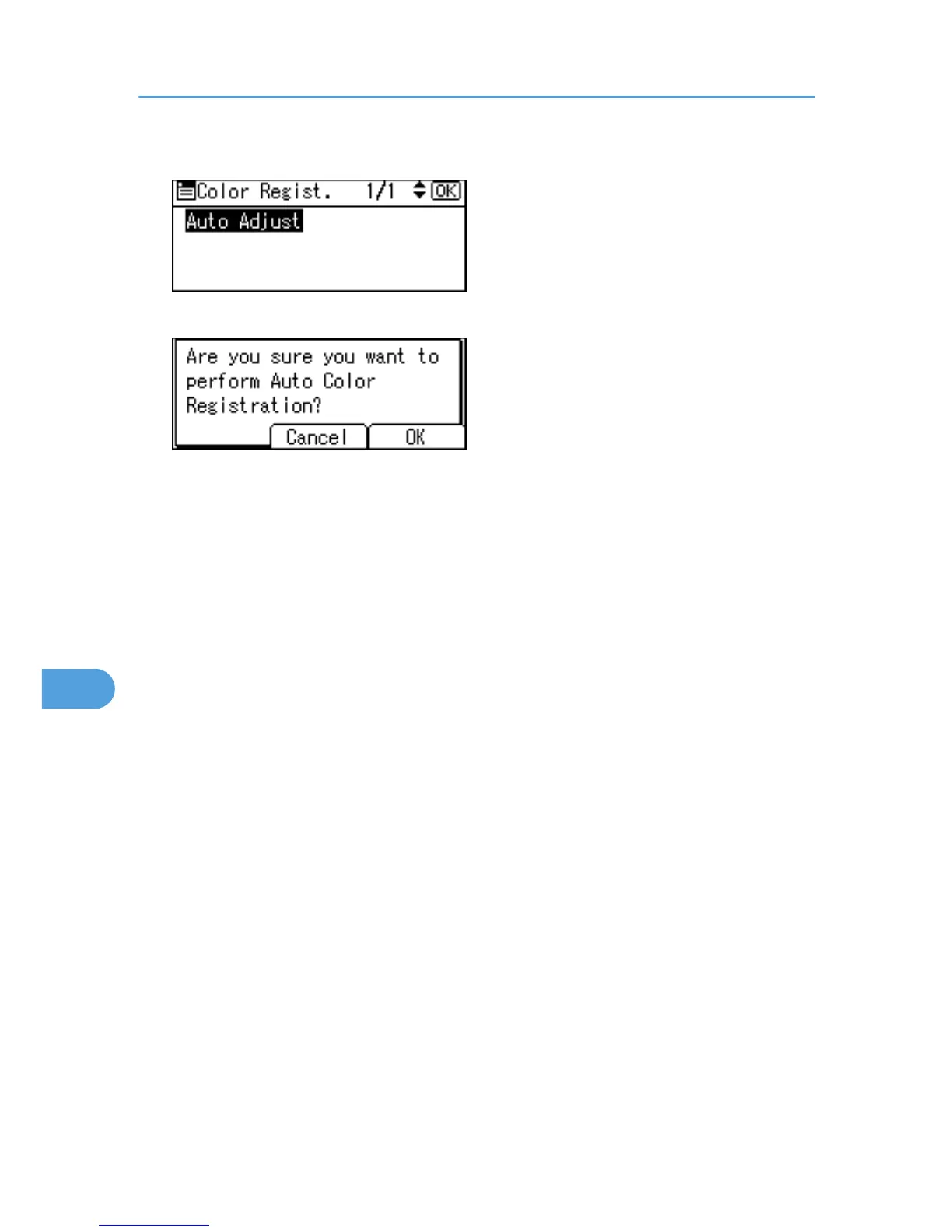

The confirmation message appears. Press [OK].
Automatic adjustment begins.
Automatic adjustment takes about 30 seconds.
A confirm message appears when complete.
7.
Press [Exit].
The display returns to the Color Registration screen.
The display returns to the initial screen.
8. Adjusting the Printer
186
8
187
189
Table of Contents
Operating Instructions
1
Table of Contents
3
Positions of WARNING and CAUTION Labels
8
Manuals for this Printer
11
How to Read this Manual
12
Symbols
12
Model-Specific Information
13
List of Options
14
Installing the Operating Instructions
16
Installing the HTML Format Manuals
16
Opening the HTML Format Manuals
16
Guide to the Printer
19
Exterior: Front View
19
Exterior: Side View
21
Interior
23
Control Panel
25
Power on and off
27
Turning on the Power
27
Turning off the Power
28
Display Panel
30
Reading the Display and Using Keys
31
Installing Options
33
Available Options
33
Order of Option Installation
33
Where to Install Options
34
Cautions When Re-Installing the Controller Board
37
Attaching the Paper Feed Unit
38
Attaching the 500-Sheet Paper Feed Unit to the 1000-Sheet Paper Feed Unit
39
Attaching the 500-Sheet/1000-Sheet/2000-Sheet Paper Feed Unit
41
Installing the Memory Expansion Units
47
Installing the SDRAM Module
47
Installing the Hard Disk
50
Installing the Interface Units
56
Installing the Gigabit Ethernet Board
56
Installing the Wireless LAN Interface Board
60
Installing the Bluetooth Interface Unit
64
Installing the IEEE 1284 Interface Board
67
Installing SD Card Options
69
Connecting the Printer Cables
73
Ethernet Cable Connection
73
Reading the LED Lamps
76
USB Cable Connection
77
Digital Camera Connection
77
Parallel Cable Connection
79
Configuration
81
Ethernet Configuration
81
Specifying an IP Address (no DHCP)
82
Receiving an IP Address Automatically (DHCP)
84
Configuring Network Settings When Using Netware
86
Setting the Ethernet Speed
87
Wireless LAN Configuration
90
Setting the SSID
92
Cautions When Using a Wireless LAN
93
Setting Security Method of Wireless LAN
95
Setting a WEP Key
95
Setting WPA
96
Configuring 802.1X (WPA/WPA2)
100
Installing a Site Certificate
100
Installing Device Certificate
100
Setting Items of WPA/WPA2
102
Paper and Other Media
103
Supported Paper for each Tray
103
Symbols
103
Tray 1
103
Tray 2, 500/1000-Sheet Paper Feed Unit (Tray 3 to 5)
104
2000-Sheet Paper Feed Unit (Tray 3)
106
Bypass Tray
106
Paper Weight and Capacity
108
Paper Recommendations
109
Storing Paper
109
Types of Paper and Other Media
109
Thick Paper
111
Thin Paper
112
Ohp Transparencies
113
Label Paper
114
Coated Paper
115
Special Paper
116
Paper Not Supported by this Printer
118
Print Area
118
Loading Paper
120
Paper Tray, 500/1000-Sheet Paper Feed Unit
120
2000-Sheet Paper Feed Unit
128
Specifying a Paper Type
129
Bypass Tray
130
Using Paper Types that Have Unique Names
137
From Registration of User Paper Types to Use
137
Registering Names to Paper Types
138
Setting User Paper Types to Trays
139
Printing Using Registered Paper Types
140
Replacing Consumables
141
Adding Toner
141
Replacing the Black Drum Unit/Color Drum Units
145
Replacing the Transfer Unit
152
Replacing the Waste Toner Bottle
158
Replacing the Fusing Unit, Transfer Roller, and Dustproof Filter
163
Replacing the Fusing Unit
163
Replacing the Transfer Roller
167
Replacing the Dustproof Filter
169
Adding Staples
171
When the Booklet Finisher Is Installed
171
When the 2 Tray Finisher Is Installed
175
Cleaning the Printer
179
Cautions When Cleaning
179
Cleaning the Friction Pads
180
Paper Trays, 500/1000-Sheet Paper Feed Unit
180
2000-Sheet Paper Feed Unit
181
Cleaning the Registration Roller
183
Cleaning the Dustproof Glass
184
Adjusting the Printer
187
Adjusting the Color Registration
187
Correcting the Color Gradation
189
Setting the Gradation Correction Value
189
Viewing the Color Calibration Sample Sheet and Gradation Correction Sheet
192
Resetting the Gradation Correction Value to the Initial Value
194
Adjusting Printing Position
196
Troubleshooting
199
Error and Status Messages that Appear on the Control Panel
199
Panel Tones
210
Printer Does Not Print
211
Checking the Port Connection
213
Printing Problems
214
Additional Troubleshooting
222
Removing Jammed Staples
224
When the Booklet Finisher Is Installed
224
When the 2 Tray Finisher Is Installed
227
Removing Punch Waste
230
When the Booklet Finisher Is Installed
230
When the 2 Tray Finisher Is Installed
231
Removing Misfed Paper
233
Paper Misfeed Message (A)
234
Paper Misfeed Message (B)
236
Paper Misfeed Message (C)
238
Paper Misfeed Message (D)
242
Paper Misfeed Message (R)
244
When the Booklet Finisher Is Installed
244
When the 2 Tray Finisher Is Installed
250
Paper Misfeed Message (W)
254
Paper Misfeed Message (Y)
255
Paper Misfeed Message (Z)
256
Duplex Print Always Misfeeds
259
11. Appendix
261
Moving and Transporting the Printer
261
Moving the Printer
261
Consumables
264
Print Cartridge
264
Black Drum Unit/Color Drum Unit
264
Waste Toner Bottle
265
Staple Cartridge
265
Transfer Unit
266
Fusing Unit
266
Specifications
267
Mainframe
267
Options
270
Index
283
