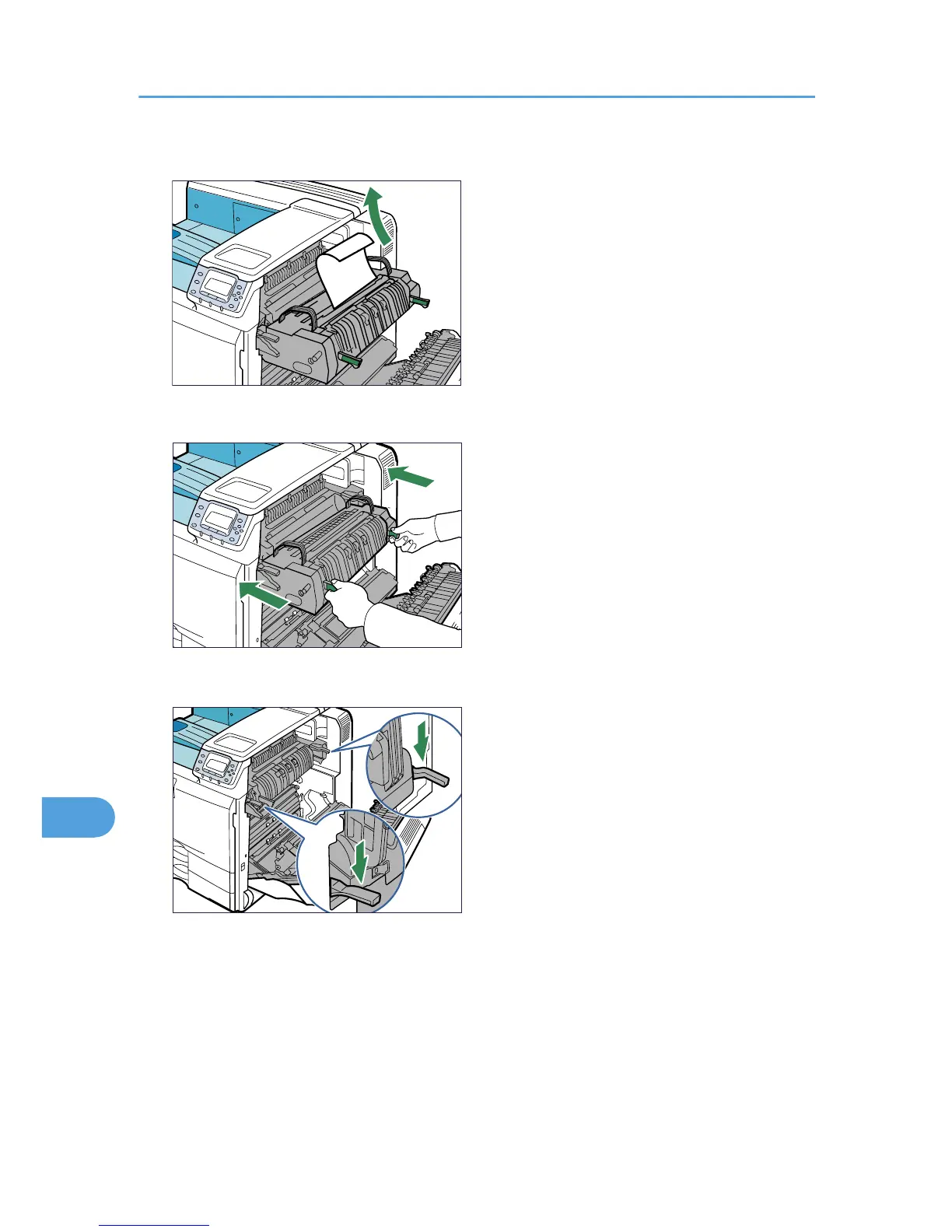

6. If you can not remove the misfeed paper, raise the C3 lever and remove the paper carefully.

BMV118S

7. Push the fusing unit back into the printer carefully until it completely stops.

BMV119S

8. Push down the C1 levers on both sides.

BMV244S

10. Removing Misfed Paper

238
