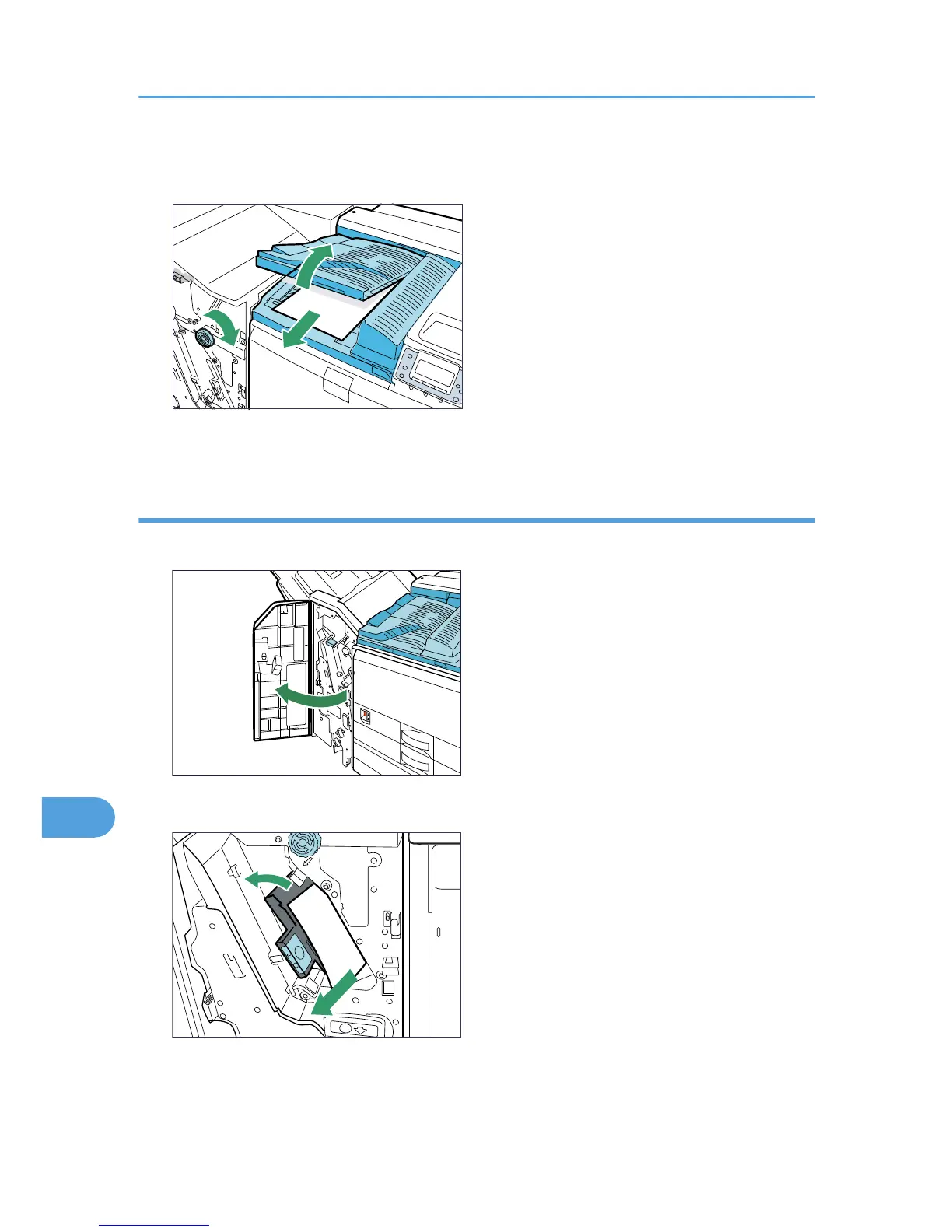

8. If the paper could not be removed, open the left cover of the bridge unit, and then turn the

R3 knob clockwise to remove the paper.

BMV125S

9. Close the left cover of the bridge unit and top cover of the finisher.

When R4, R5, or R6 is displayed.

1. Open the front cover of the finisher.

BMV088S

2. Open the R4 lever outward and remove the paper.

BMV126S

3. Return the R4 lever to its original position.

10. Removing Misfed Paper

244
