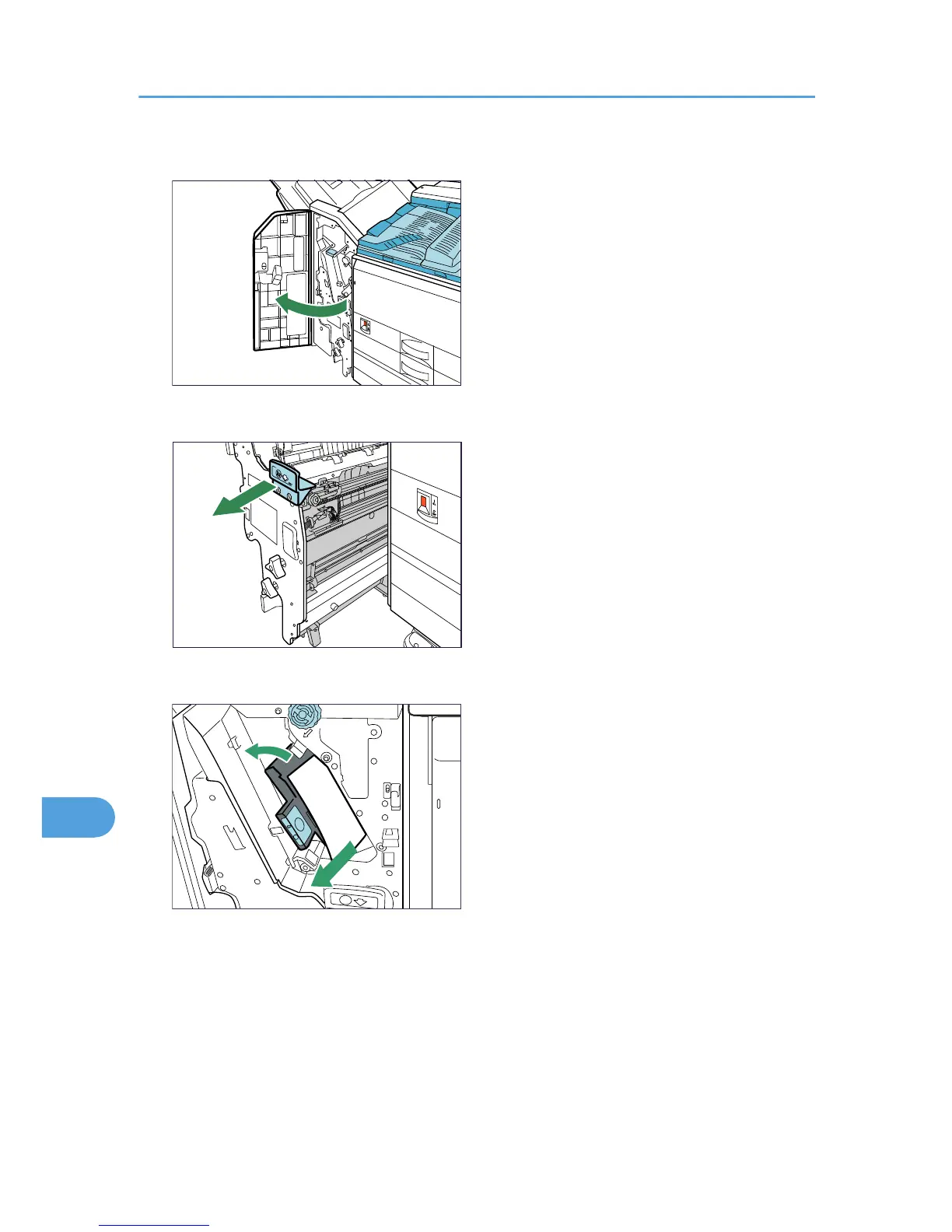

1. Open the front cover of the finisher.

BMV088S

2. Holding the R7 lever, pull out the staple unit.

BMV089S

3. Pull the R8 lever and remove the paper.

BMV126S

4. Return the R8 lever to its original position.

10. Removing Misfed Paper

246
