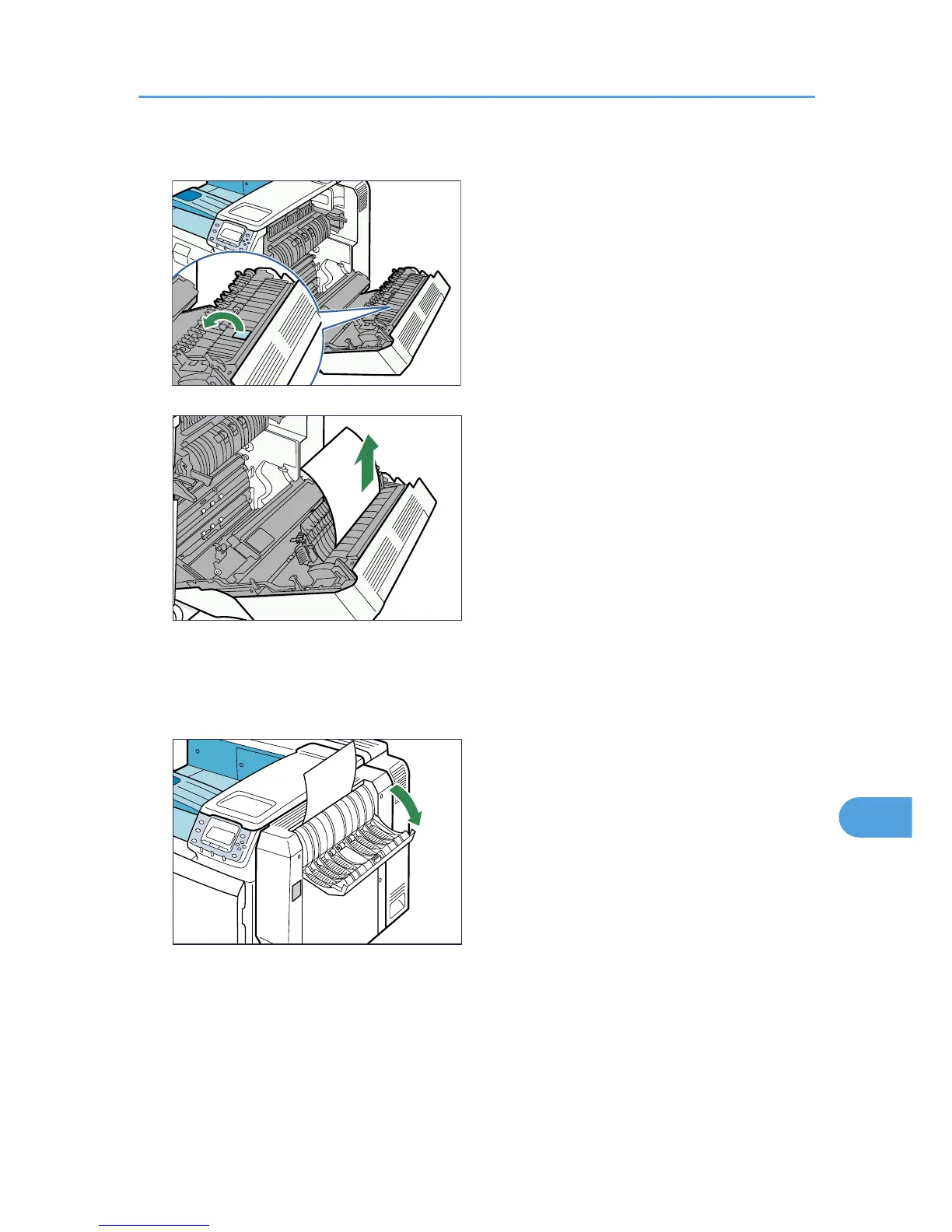

3. Holding knob Z, open the cover, and then remove the paper carefully.

BMV242S

BMV136S

4. Close the cover.

5. Carefully close the right cover.

6. Open the upper right cover.

BEK044S

Paper Misfeed Message (Z)

255
