Ricoh Aficio SP C820DN User Manual

BMV144S

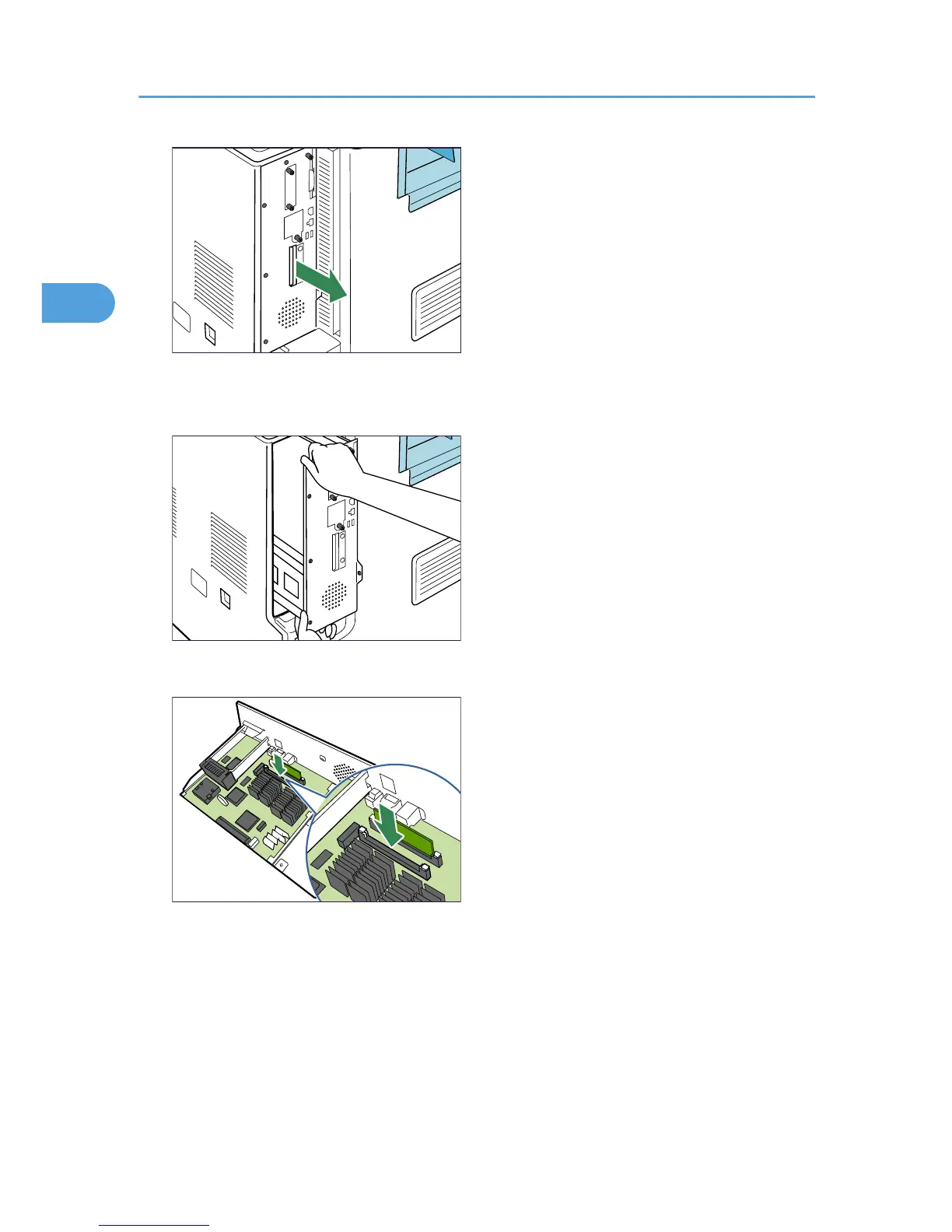

Use both hands to slide the controller board completely out, and then place it on a flat surface such
as a table.
BMV145S
4. Install the SDRAM module in the indicated position.
BMV146S
There are two SDRAM slots. A 512 MB SDRAM module is installed in the outer slot. When installing
an expansion SDRAM module, install the module in the free, inner slot.
2. Installing Options
46
2
