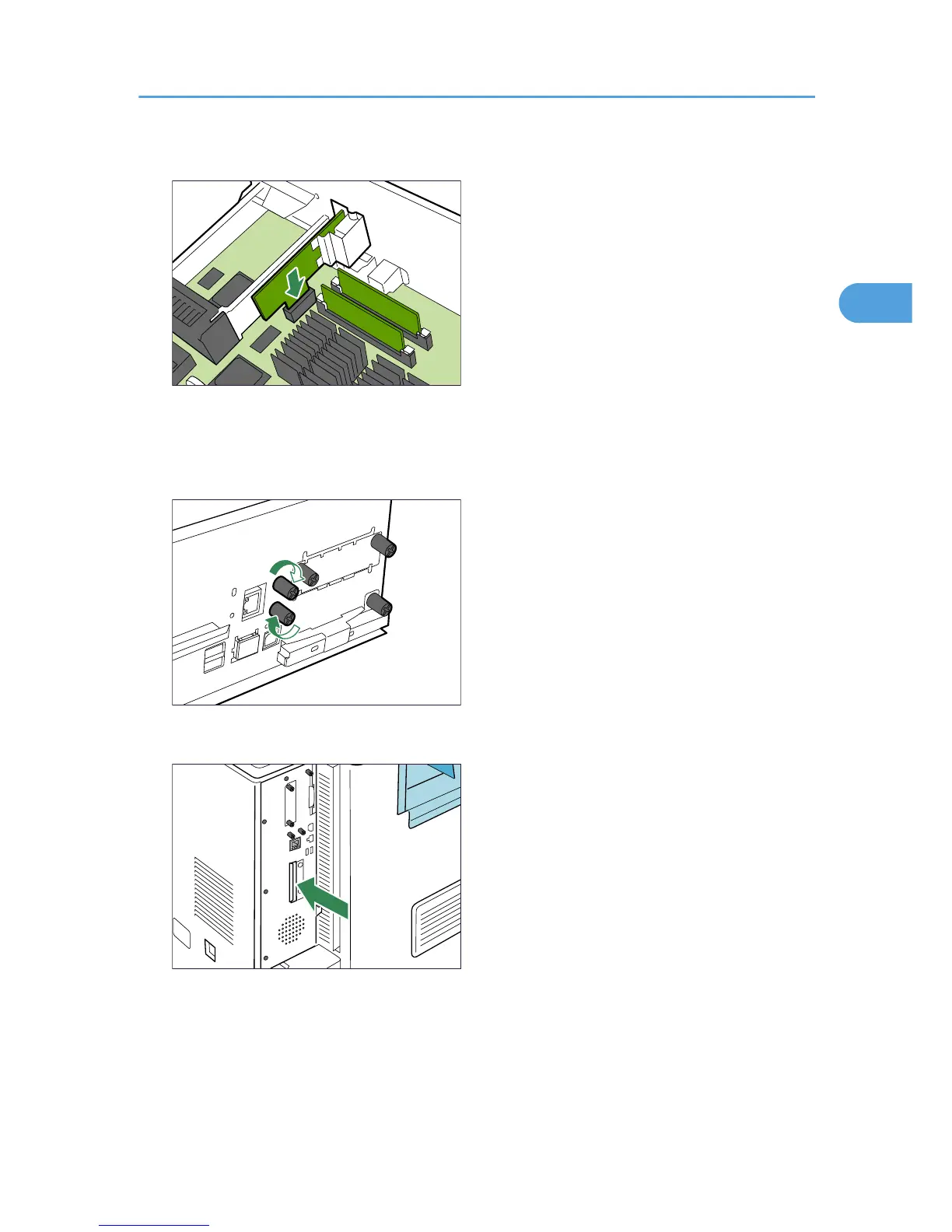

8. Carefully insert the Gigabit Ethernet board vertically, all the way to the back.
BMV163S
Push the Gigabit Ethernet board all the way to the back, and confirm that it is securely connected to
the controller board.
9. Use 2 coin screws to fasten the Gigabit Ethernet board to the controller board panel.
BMV164S
10. Fit the controller board into the printer, and push it carefully until it stops.
BMV286S
Push it firmly into the printer using the handle. The printer may malfunction if the controller board is
not properly installed.
