2.2.2 Installing the Rollers: Tray 1, Tray 2

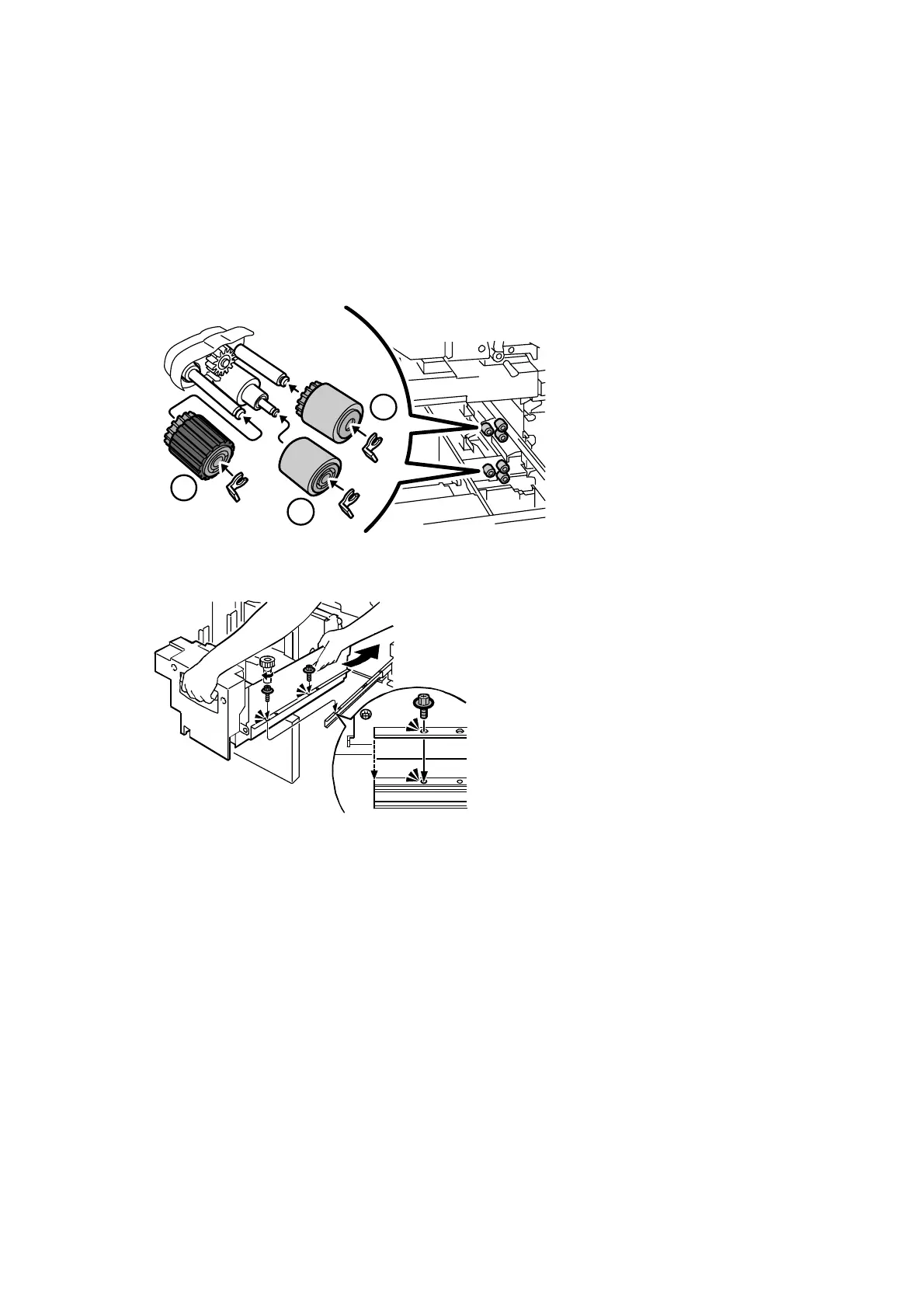

1. Attach the new paper feed roller in the following order:
(1) Separation snap ring and roller
(2) Feed roller snap ring and roller
(3) Pick-up roller snap ring and roller
3
1
2
CEZ212
2. Mount the tray on the rail and align the screw holes.
CEZ202
3. Reattach the two black screws.
4. Slide the tray into the machine slowly and make sure that the latch locks at the
back.
5. Push the tray (Tray 1) and bottom tray (Tray 2) back into the machine.
6. Reconnect the power cord to the power source.
7. Turn the machine's main power switch to ON, close the left and right front
covers, and then wait for the machine to warm up.
8. Access the Adjustment Settings for Skilled Operators menu. (See p.18
"Accessing the Adjustment Settings for Skilled Operators".)
9. Reset the replaceable parts counter for the replaced rollers. (See p.20
"Resetting the Replaceable Parts Counter".)
