5.2 Installing the Cleaning Unit for Intermediate Transfer
Belt

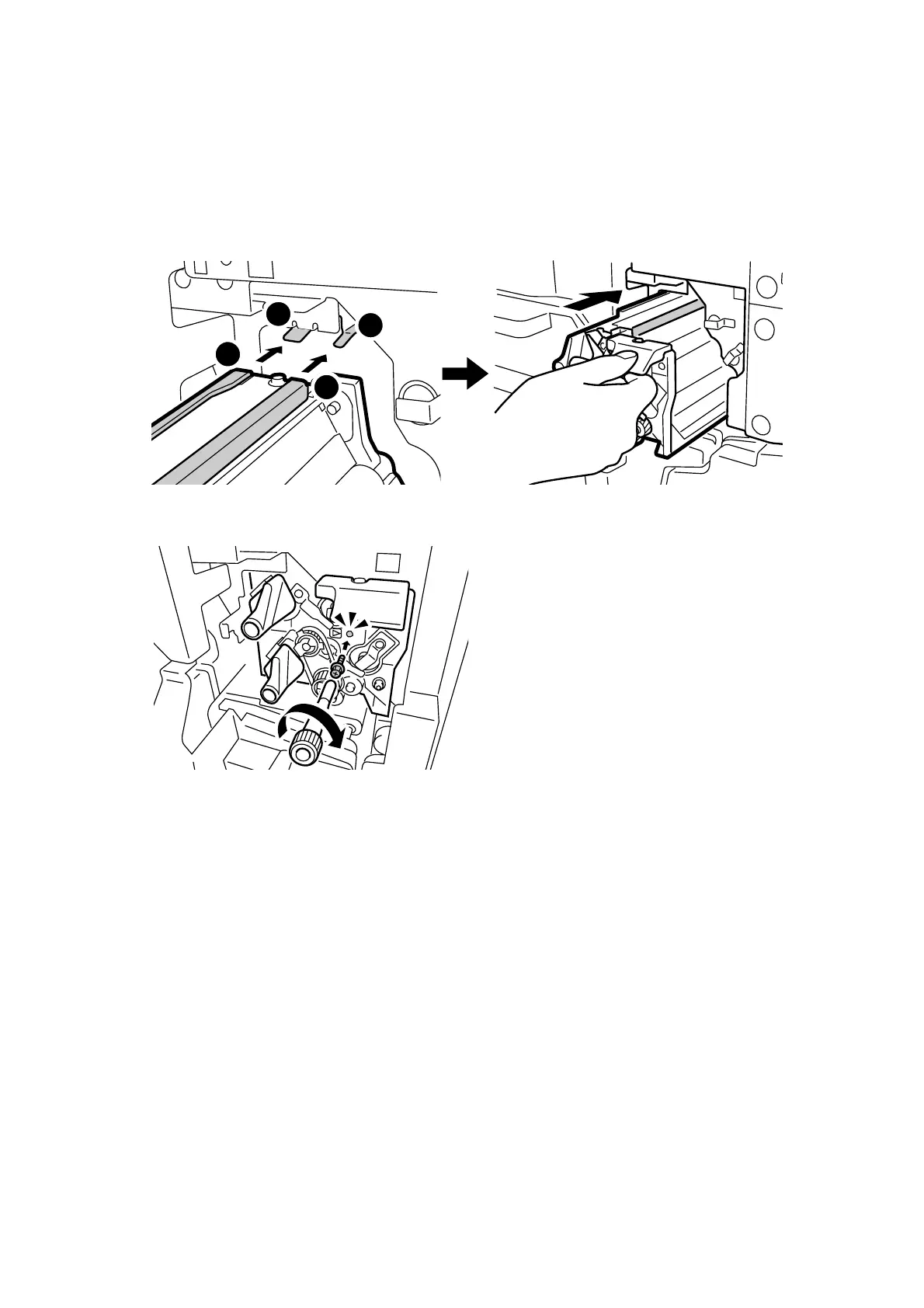

1. Mount the cleaning unit for intermediate transfer belt (A) on its rails (B), and
then carefully push it in until it can go no further.
B
A
B
A
CEZ118
2. Reattach the black screw.
CEZ166
Note: Do not touch the levers and do not reattach the cover yet.
3. Remove the transfer unit. For details, see p.76 "Removing the Transfer Unit".
4. Close the right drawer with the transfer unit detached.
5. Reconnect the power cord to the power source.
6. Turn the machine's main power switch to ON, and close the both front doors.
7. Access the Adjustment Settings for Skilled Operators menu. (See p.18
"Accessing the Adjustment Settings for Skilled Operators".)
Note: Although the alert message of "Cover Open" is on the operation panel,
press the [User Tools] key on the control panel.
8. Reset the replaceable parts counter for the replaced cleaning unit for
intermediate transfer belt. (See p.20 "Resetting the Replaceable Parts
Counter".)
