37

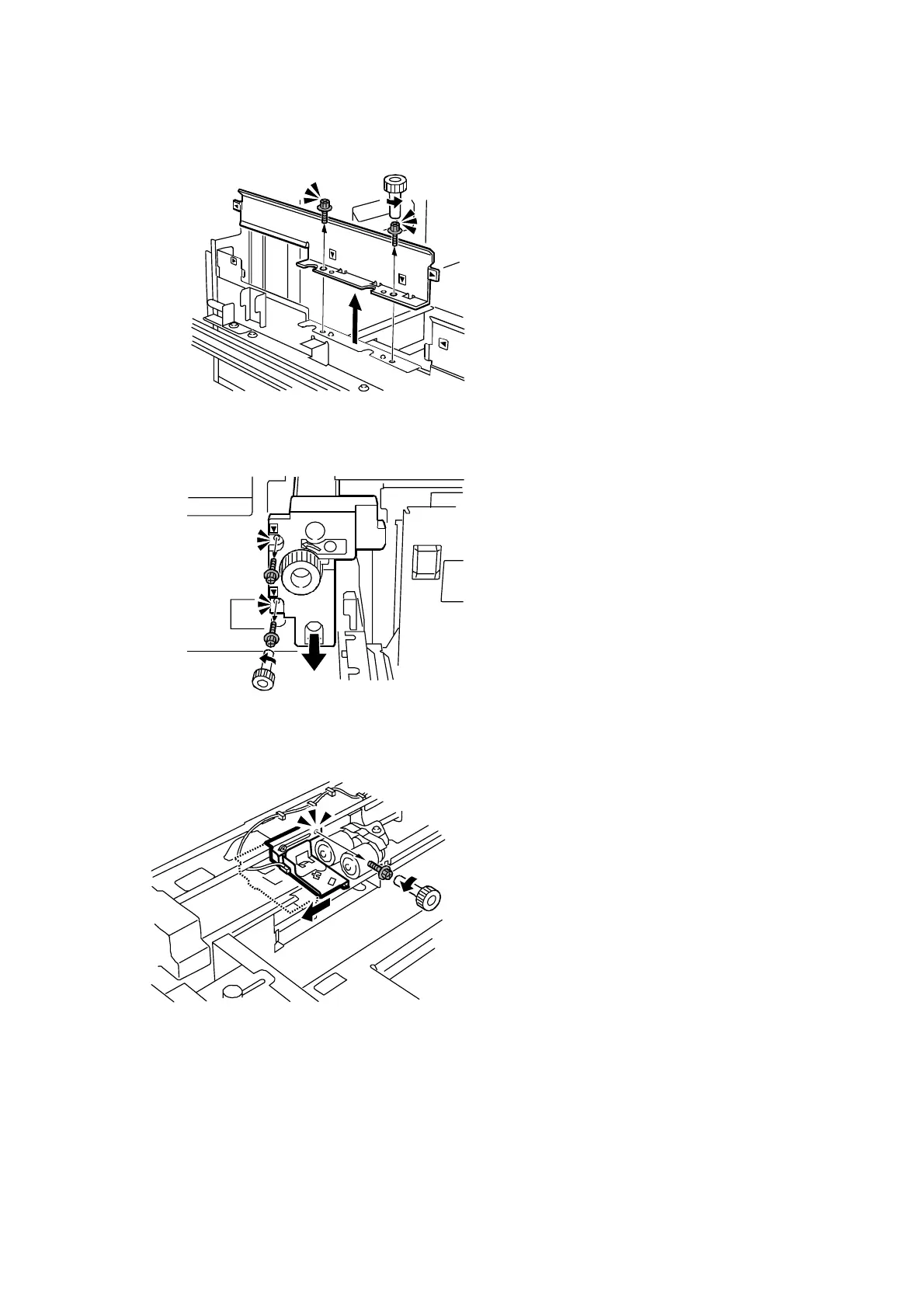

4. Remove the two black screws on the side plate then remove the plate.
CEZ203
5. Remove the two black screws on the paper feed unit U6, and then pull out the
paper feed unit U6.
CEZ206
6. Push the tray partially into the wide LCT.
7. Remove the black screw on the bracket.
cez180
8. Slide the bracket to the left so you can reach the rollers.
To Next Page
