2.5.2 Installing the Rollers: Bottom Tray (Tray 5)

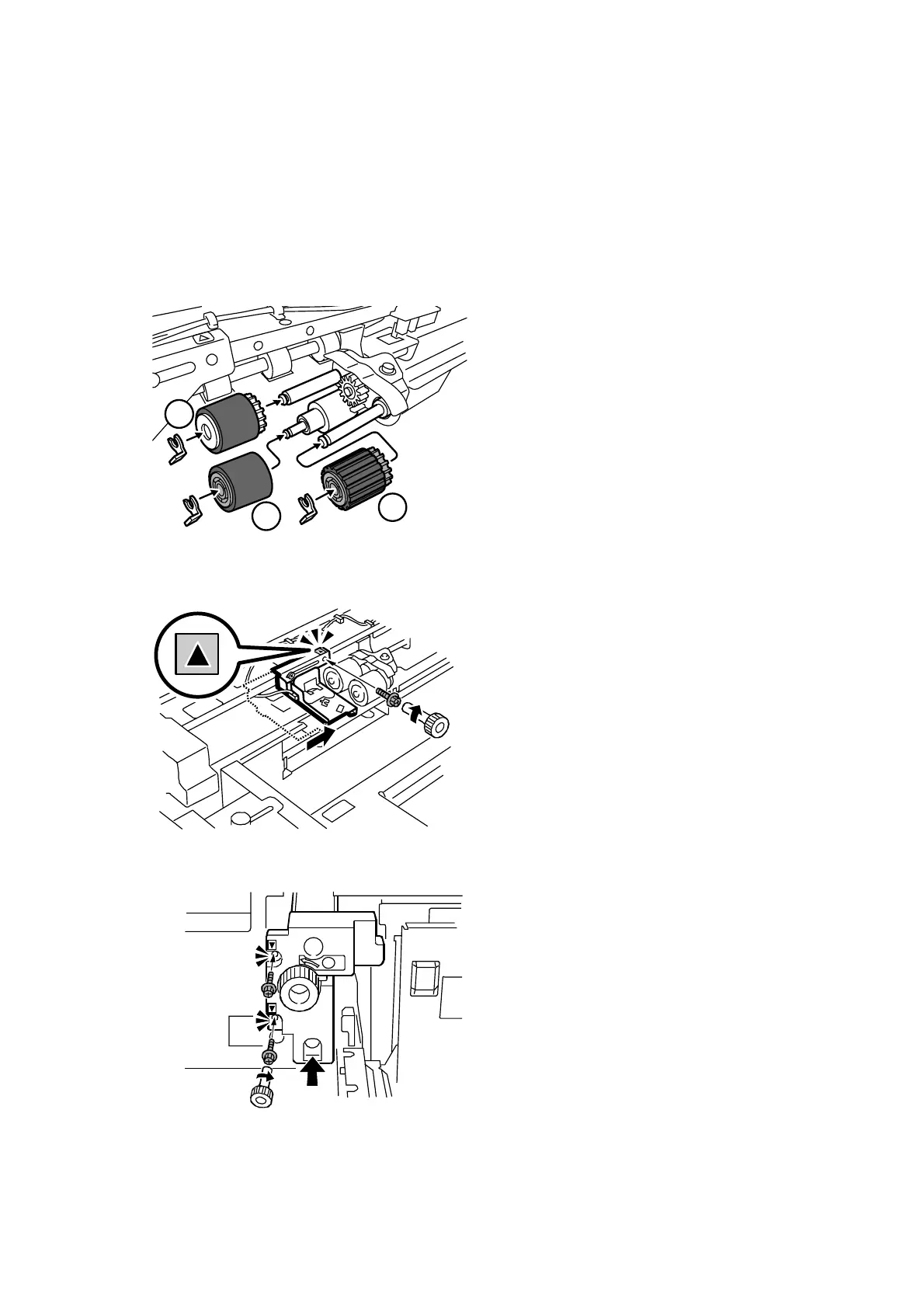

1. Attach the new paper feed roller in the following order:
(1) Separation snap ring and roller
(2) Feed roller snap ring and roller
(3) Pick-up roller snap ring and roller
3
2
1
CEZ184
2. Slide the bracket back to its original position, carefully align the screw hole with
the triangular marking, and then reattach the black screw.
cez181
3. Push the paper feed unit U6 into the machine.
CEZ209
4. Fasten the paper feed unit U6 with the two black screws.
