Ricoh D074 Series Replacement Guide

77

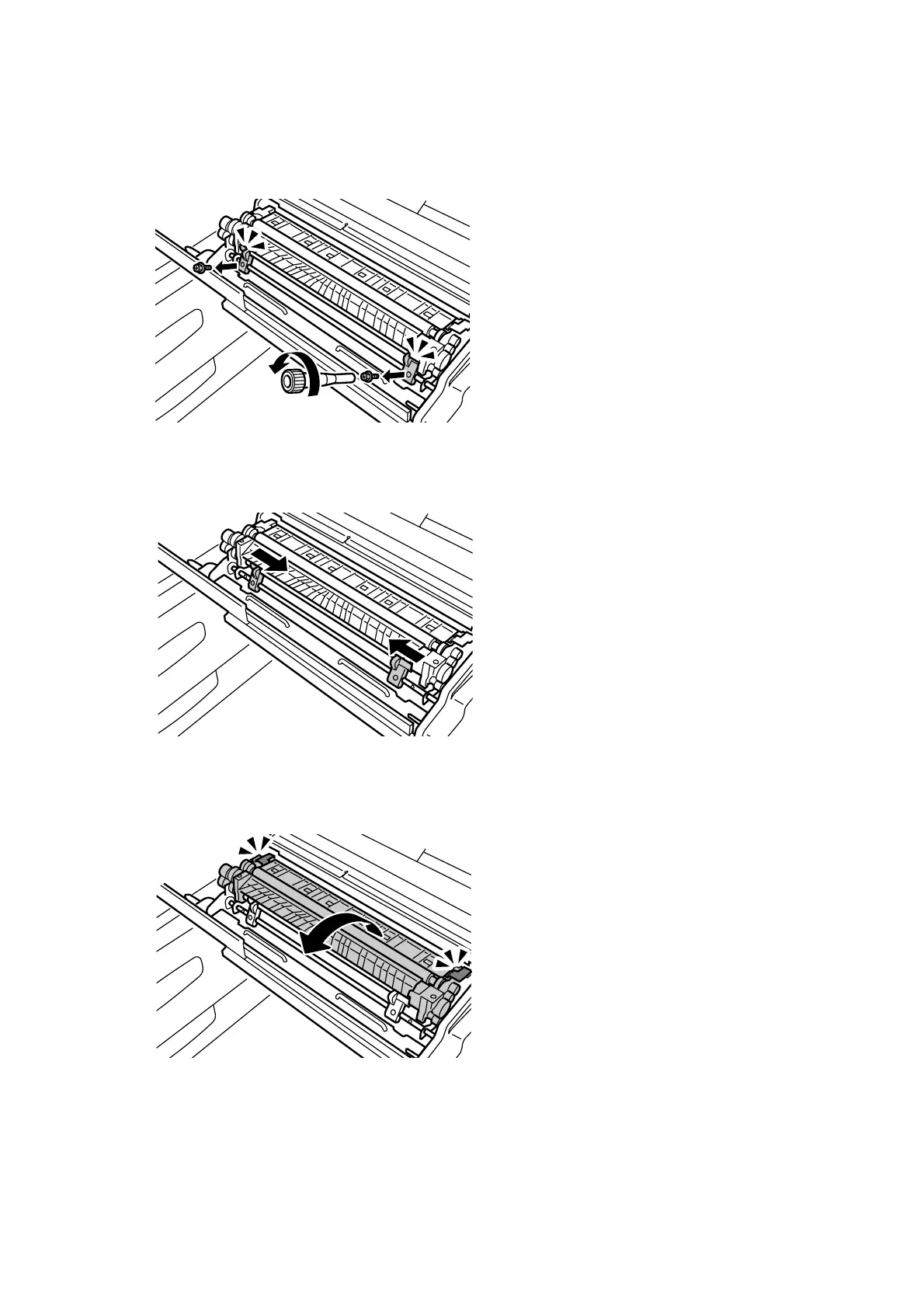

5. Remove the two black screws.
CEZ139
6. Push both arm supports toward the center until they stop.
CEZ140
7. Grip both ends of the unit by the metal handles, and then rotate the unit toward
you to disconnect it from the shaft below and remove it.
CEZ187
Important:
• To prevent toner spillage, always keep the transfer unit level.
