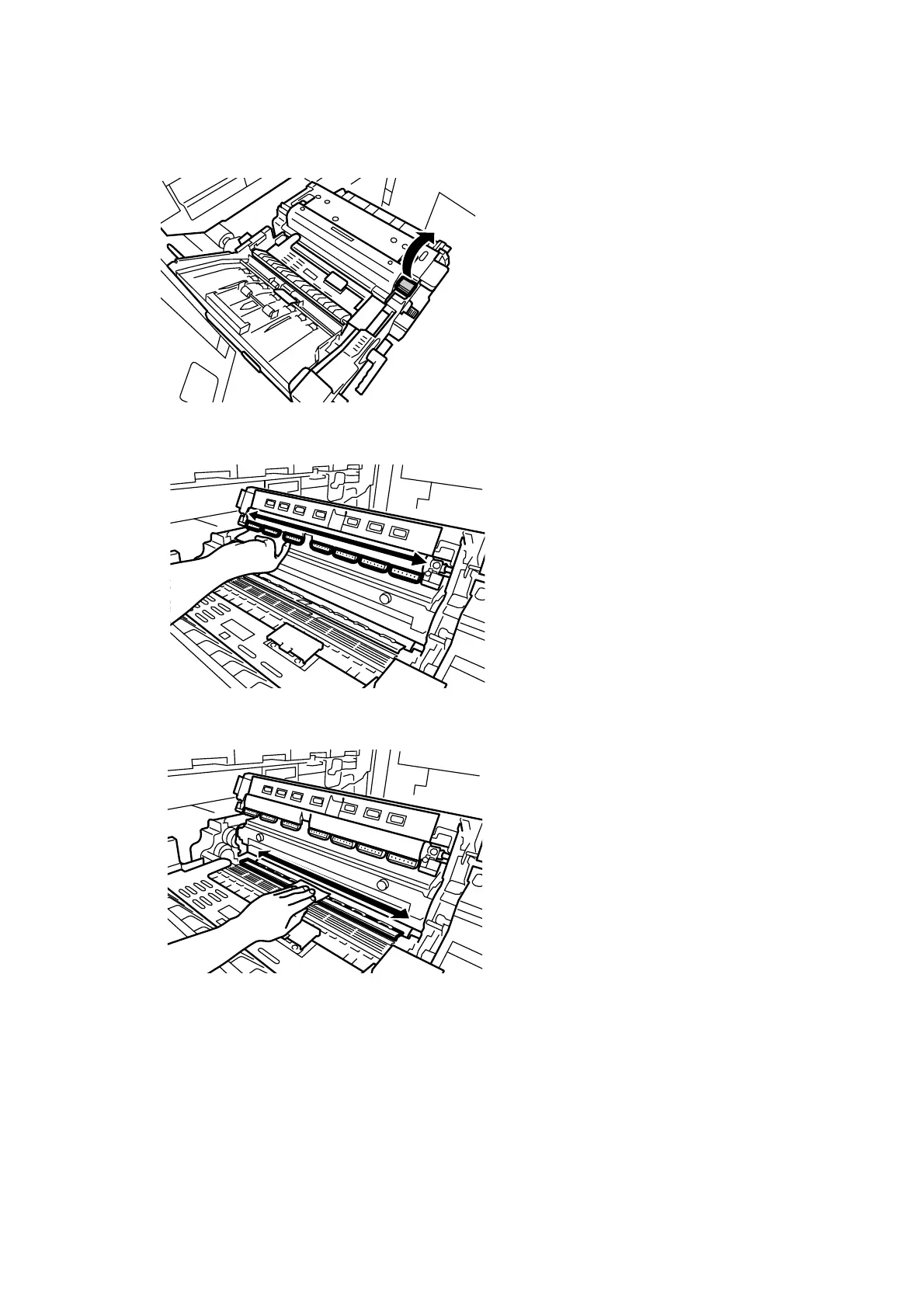

4. Open the cover D2 on top of the fusing unit.

CEZ188

5. Use a dry cloth to clean the stripper plate on the fusing belt.

CEZ189

6. Use a dry cloth to clean the stripper plate on the pressure roller.

CEZ193

7. Close the cover D2.

Default Chapter2
1 Before You Begin10
2 Replacing the Paper Feed Rollers21
3 Charge Roller Unit and Cleaning Unit for PCU46
- Removing the Charge Roller Unit and Cleaning Unit for PCU47
- Installing the Charge Roller Unit and Cleaning Unit for PCU51
4 Drum Unit55
- Removing the Drum Unit56
- Installing the Drum Unit61
5 Cleaning Unit for Intermediate Transfer Belt67
- Removing the Cleaning Unit for Intermediate Transfer Belt68
- Installing the Cleaning Unit for Intermediate Transfer Belt72
6 Transfer Unit75
- Removing the Transfer Unit76
- Installing the Transfer Unit78
7 Fusing Unit and Cleaning Unit for Fusing Unit81
- Removing the Fusing Unit and the Cleaning Unit for Fusing Unit82
- Installing the Fusing Unit and Cleaning Unit for Fusing Unit86
8 Periodic Cleaning89
9 Roller and Sensor Inspection and Cleaning98
- Overview99
- Inspection and Cleaning99

Other manuals for Ricoh D074 Series

Service Training Manual542 pages

Troubleshooting149 pages
