95

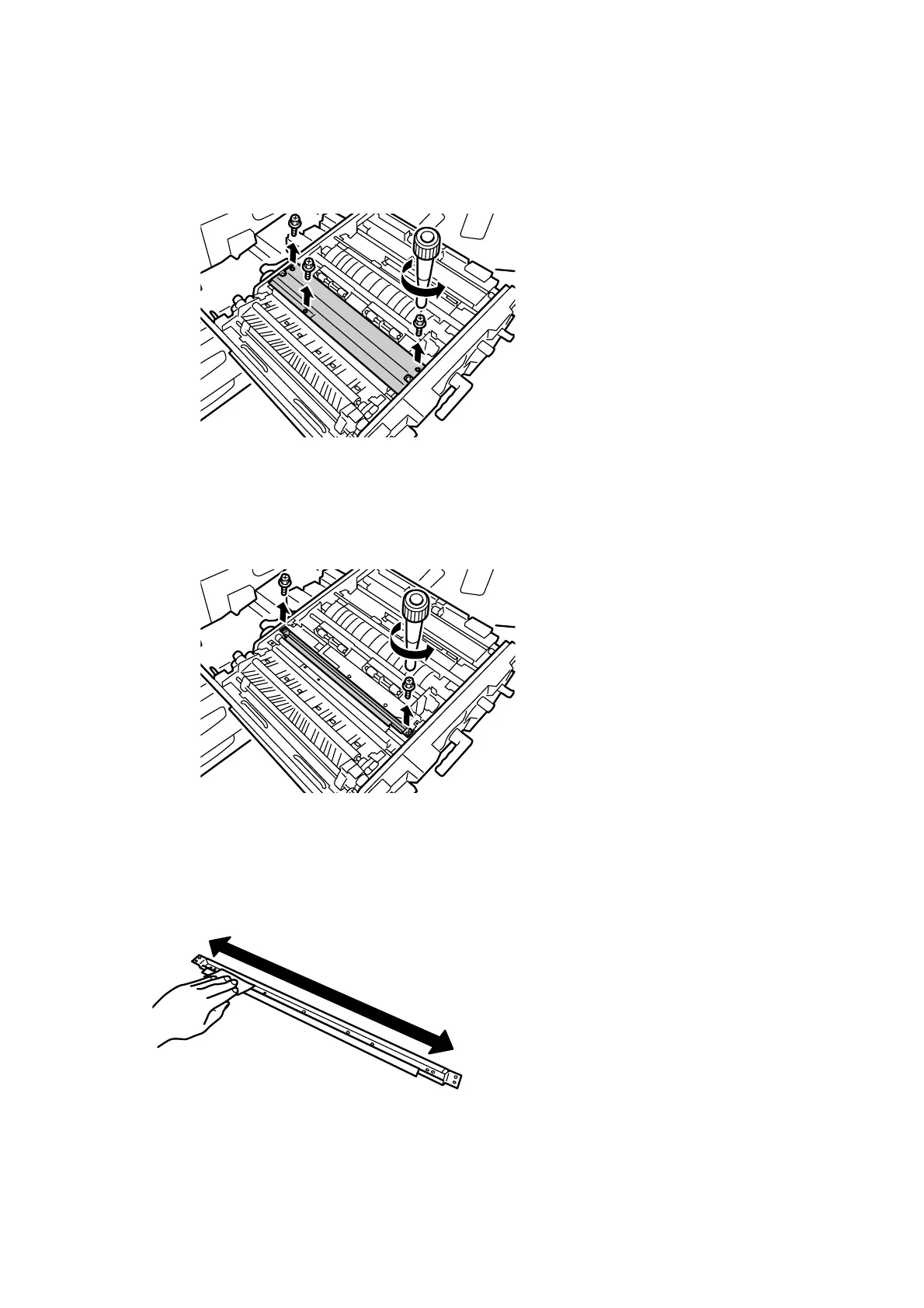

4. Remove the three black screws on the cover plate, and then remove the cover
plate.
CEZ195
5. Remove the two black screws on the dust catcher, and then remove the dust
catcher.
CEZ197
6. Empty the dust catcher into a dust bin.
7. Use a clean dry cloth to remove any dust remaining in the dust catcher.
CEZ199
