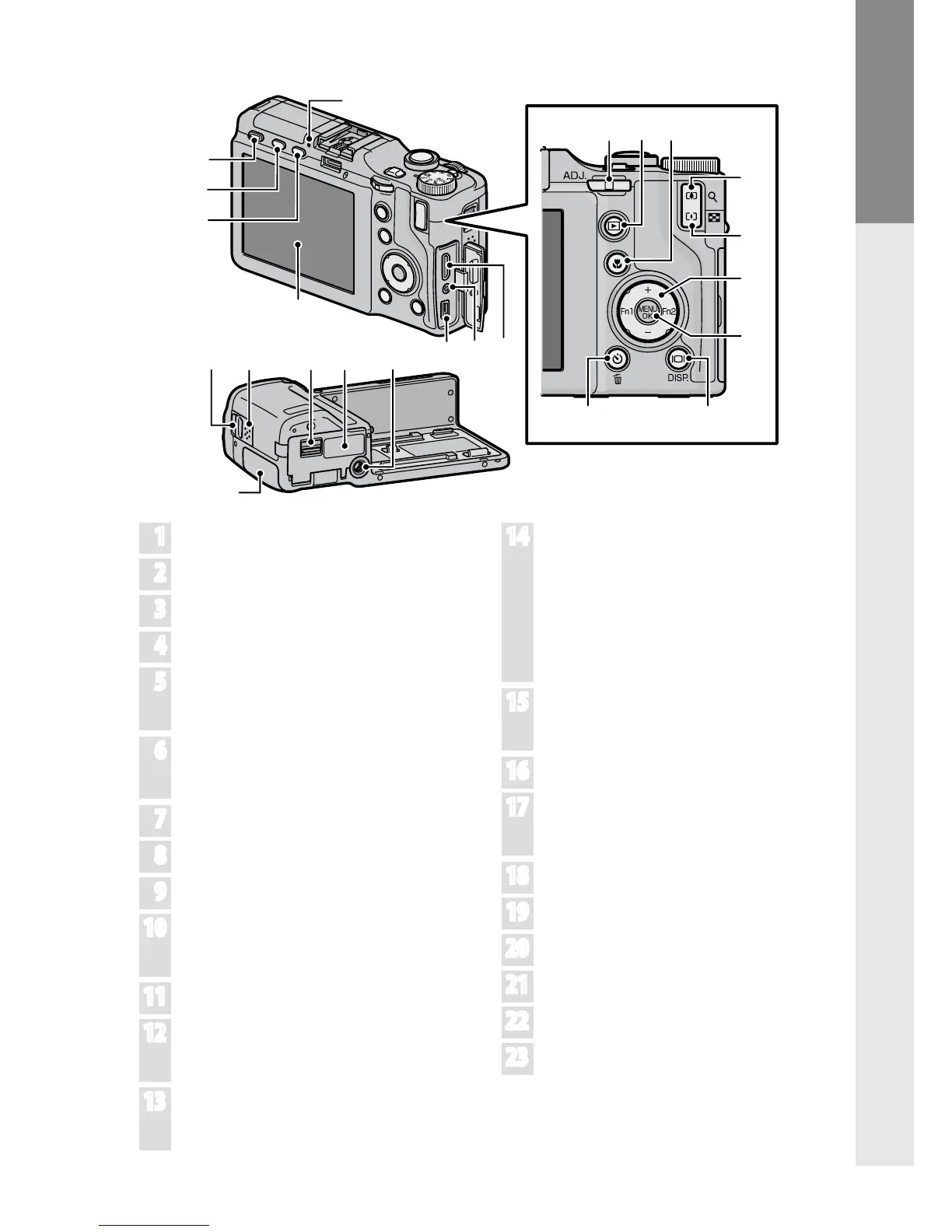

1 DIRECT button ..............................5
2 OPEN/f(ash) button ................29
3 VF/LCD button.............................42
4 Picture display ...............................8
5 Autofocus/ash lamp
................................ 18, 22, 29 ,141
6 Connector for USB cable
.......................... 120, 159, 160, 162
7 Connector for A/V cable .............118
8 Connector for HDMI mini cable ...119
9 ADJ. lever ..............................5, 134
10 6 (playback) button
................................ 19, 34, 94, 101
11 N (macro) button ......................27
12 8 (telephoto)/z (enlarged
view) button .........................26, 36
13 9 (wide-angle)/Z (thumbnail
display) button ......................26, 36
14 Directional pad ............................37
+ (!) .....................................137
– (
%) .....................................137
Fn1 (Function1) (
#) ...............136
Fn2 (Function2) (
$) ...............136
15 C/D button
.................................... 58, 101, 126
16 O (DISP.) button ....................42
17 t (self-timer)/d (delete) button
..............................................31, 39
18 Tripod screw hole ......................176
19 Battery/card cover .................14, 15
20 Release lever .........................14, 15
21 Speaker ........................................–
22 Strap eyelet ...................................ii
23 Connector cover .................118, 121
