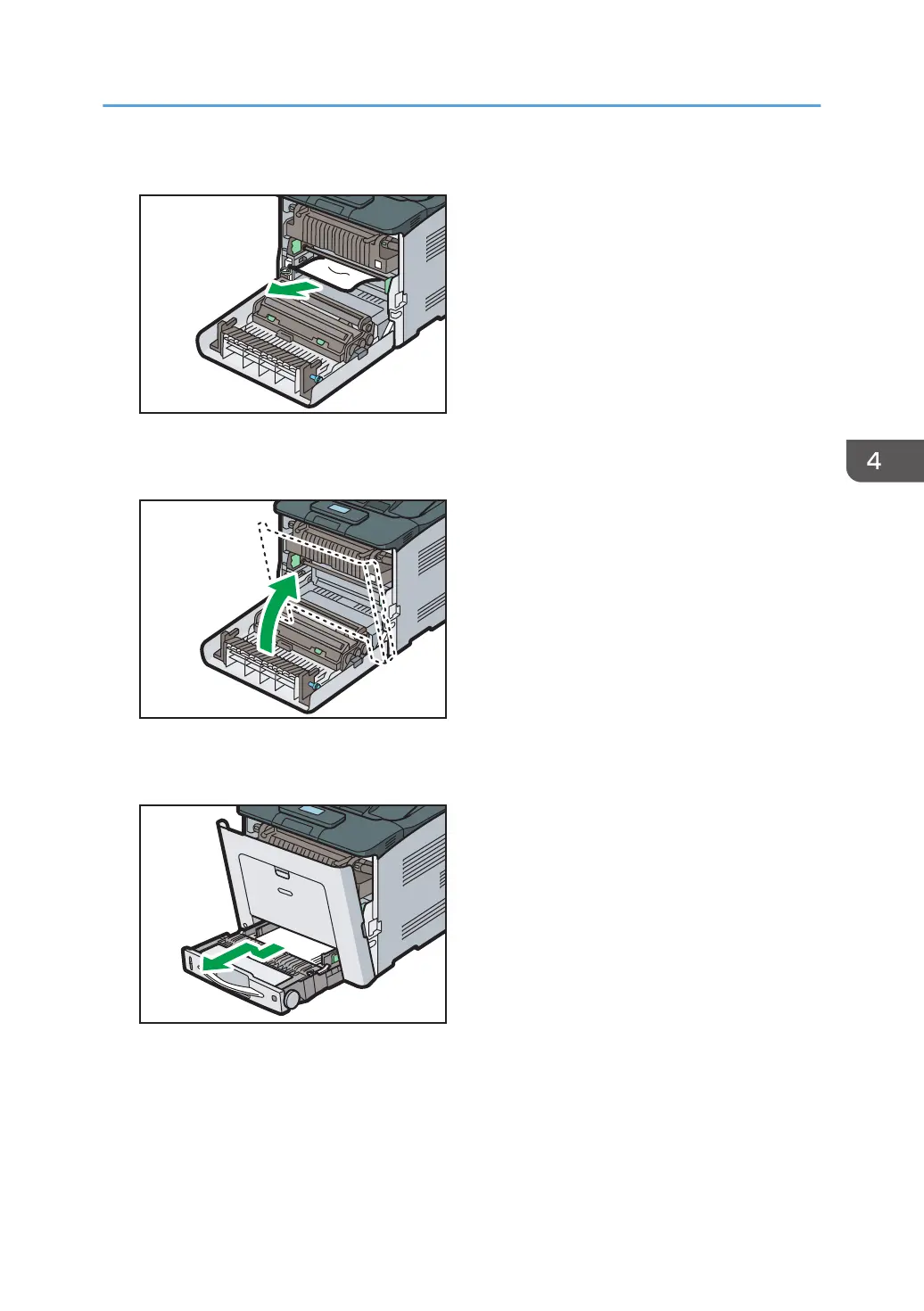

2. Carefully pull the jammed paper upward and out.
DUP328
3. If you cannot see the jammed paper inside the printer, close the front cover to the position
just before it is locked as shown in the illustration below.
DUP329
4. Pull the tray carefully until it stops, lift the front side of the tray, and then pull it out of the
printer.
DUP330
Removing Jammed Paper
99
