30.

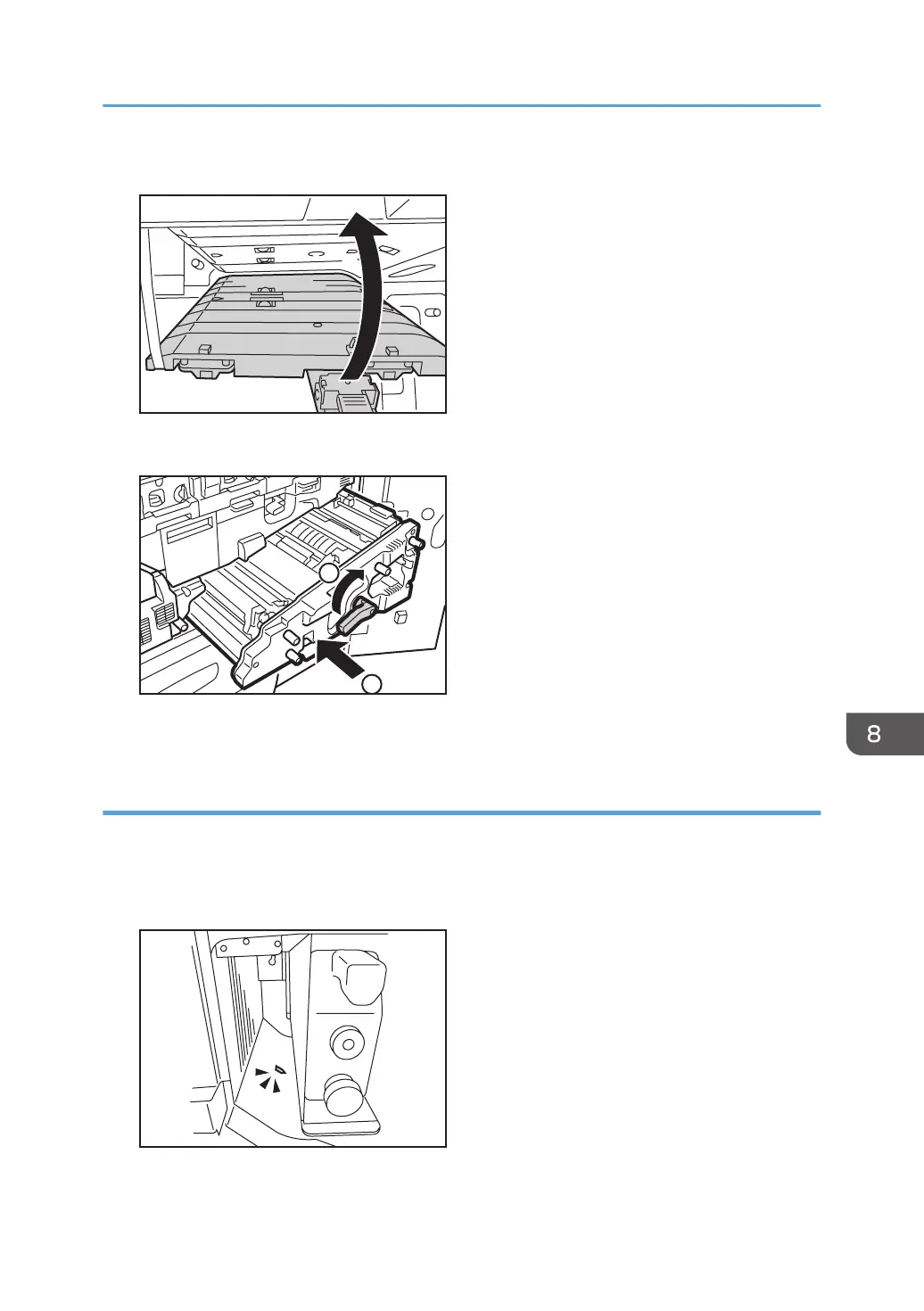

Close the duplex transport path plate (Z4).
CEZ305
31.
Push the right drawer into the main unit until it stops, and then pull up the lever B5.
2
1
CEZ122
32.
Close the front covers.
Purged Paper Sensor
1.
Open the left front cover.
2.
If there is any paper in the purge tray, remove it.
3.
Clean the sensors.
CEZ262
4.
Close the left front cover.
Cleaning the Paper Feed Path
125
126
128
