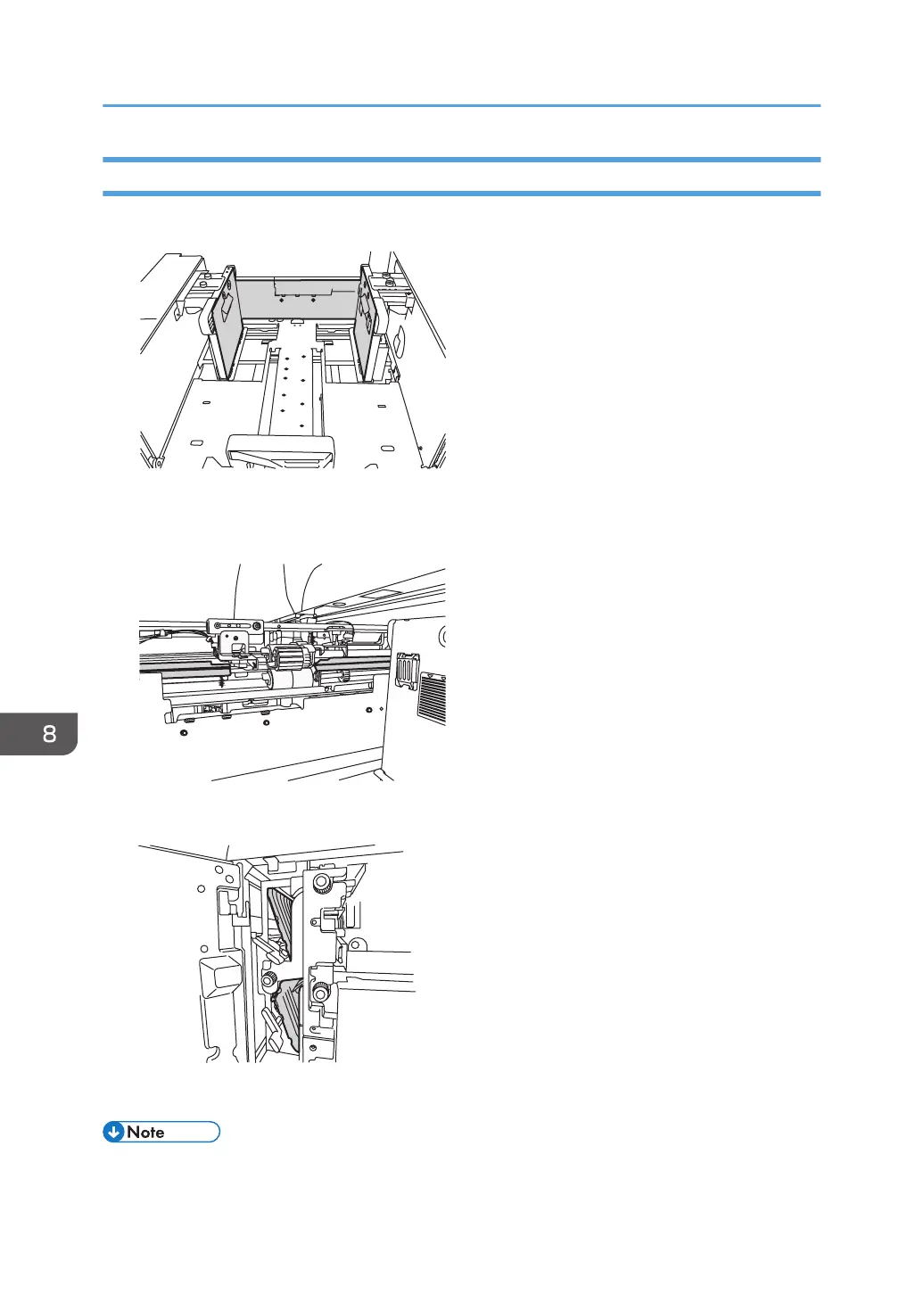

Cleaning the Paper Feed Path in the Wide LCT
1.
Clean the side fences and front guide.
CEZ502
2.
Clean the paper feed rollers.
3.
Clean the guide board of the paper feed unit.
CEZ503
4.
Clean the guide board interior.
CZC305
5.
After cleaning, restore the machine so that it resumes operation.
•
For details about detaching and reattaching the parts, see the Replacement Guide.
